Documents: GSD146.1P

Datasheet(OpenAir GSD Series Non-Spring Return. 20 lb-in (2 Nm). Rotary Electronic Damper Actuators Technical Instructions)Datasheet(OpenAir GSD Series. Non-Spring Return. 20 lb-in (2 Nm). Rotary Electronic Damper Actuators Submittal Sheet)Installation instruction(OpenAir GSD Series. Non-Spring Return Rotary Electronic Damper Actuators Installation Instructions) Installation Instructions More Info

GSD146.1P | Damper Actuator | Non-Spring Return | 24 VAC/DC | On/Off/Floating Point | 20 lb-in | SW | Siemens

Damper Actuator 20 lb-in 2-position/floating control, non-spring return, built in auxiliary switches and plenum rated. Used for low torque VAV applications and small dampers.

Brand: SiemensSKU: GSD146.1P

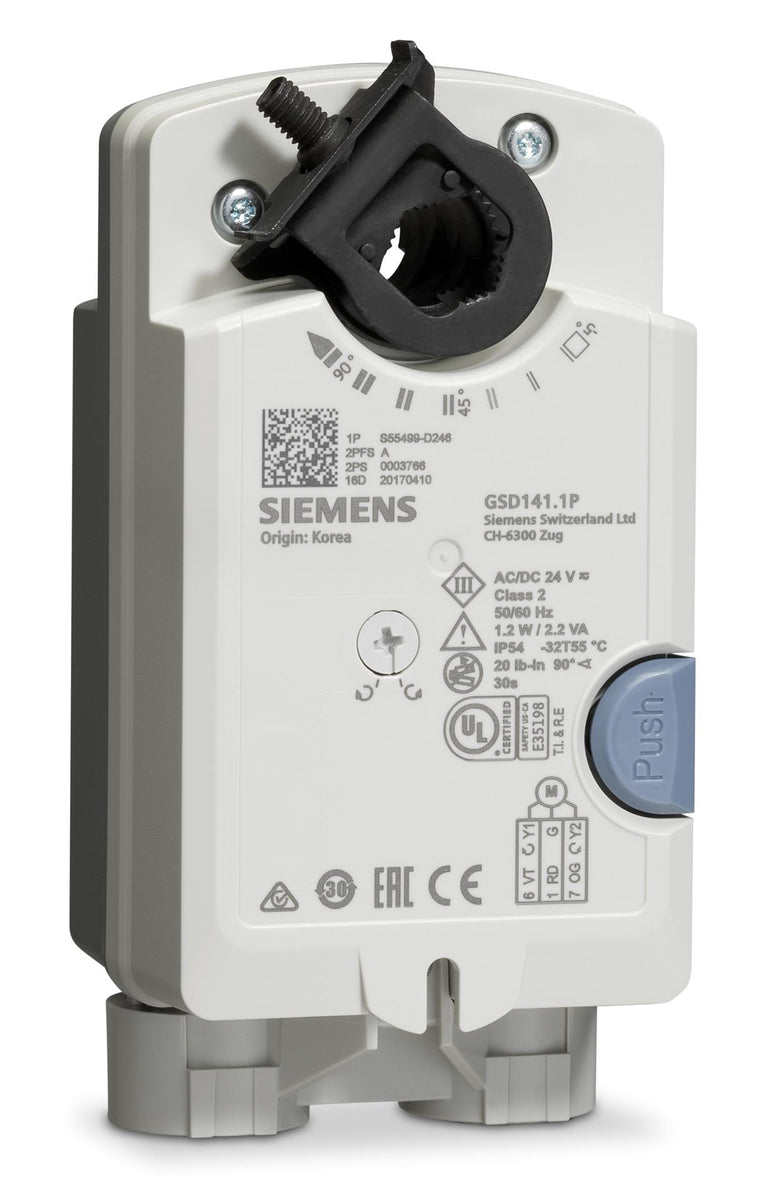

Siemens | GSD146.1P
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GSD146.1P
Jump to: Overview & Specifications Reviews

Overview Details for GSD146.1P

Damper Actuator | Non-Spring Return | 24 VAC/DC | On/Off/Floating Point | 20 lb-in | SW

Damper Actuator 20 lb-in 2-position/floating control, non-spring return, built in auxiliary switches and plenum rated. Used for low torque VAV applications and small dampers.

Specifications

Actuator Type
Non-spring return
Actuation Style
Rotary
Control or Fire/Smoke Type
Control Damper
Plenum or Standard Rating
Plenum
Torque
20 lb-in
Fail Safe
No
Control Signal
2-position , Floating control
Positioning time
Runtime for 90° 30 s
Position feedback
No
Power consumption
Running: 2.2 VA (1.2 W), Holding: 1.0 VA (0.5 W)
Ambient temperature, operation
-25 to 130 °F, -32 to 55 °C
Operating voltage
24 VAC, 24 VDC
Supply Voltage
24 VAC/DC
Frequency
50/60 Hz
Auxiliary Switch
Yes
Auxiliary switch
2
Cable length
3 ft
Dimensions (W x H x D)
2.83 x 5.86 x 2.45 in
Material, housing
IP54 enclosure, Plenum rated rugged plastic
