GQD136.1P | Damper Actuator | Spring Return | 24 VAC/DC | Floating | 20 lb-in | SW | Siemens
OpenAir™ GQD Series Electric Damper Actuator, rotary, spring return, 20 lb-in (2 Nm), 24 Vac/dc, floating control, 30 sec run time,auxiliary switches, plenum rated

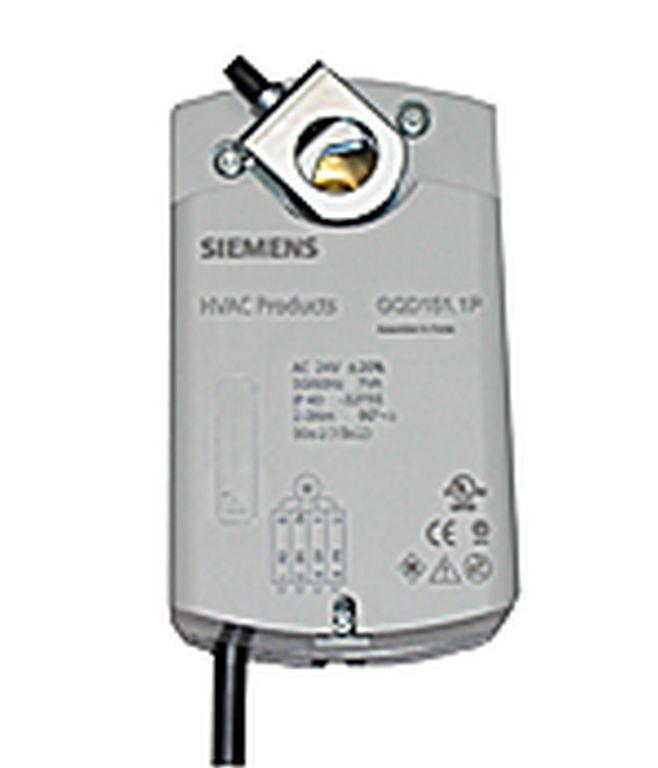

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GQD136.1P
Documents and manuals
Siemens GQD136.1P Documents
Datasheet(OpenAir GQD Series. Spring Return. Rotary. Electronic Damper. 20 lb-in (2 Nm) Submittal Sheet)Datasheet(OpenAir GQD Series Spring Return. 20 lb-in (2 Nm). Rotary. Electronic Damper Acutators Technical Instructions)Installation instruction(OpenAir GQD Series SR Rotary Electronic Damper Actuators Installation Instructions) Installation Instructions More Info
Overview
Details for GQD136.1P
Damper Actuator | Spring Return | 24 VAC/DC | Floating | 20 lb-in | SW
OpenAir™ GQD Series Electric Damper Actuator, rotary, spring return, 20 lb-in (2 Nm), 24 Vac/dc, floating control, 30 sec run time,auxiliary switches, plenum ratedSpecifications
- Control or Fire/Smoke Type
- Control Damper
- Torque
- 20 lb-in
- Positioning time
- Open:30 s, Close:15 s
- Position feedback
- No
- Power consumption
- Running: 4 VA / 2.5 W, Holding: 3 VA / 1.5 W
- Ambient humidity, operation
- 95 % r.h.
- Angular rotation
- 90°
- Operating voltage
- 19.2…28.2 V24 V#AC/DC
- Frequency
- 50/60 Hz
- Auxiliary switch
- 2
- Cable length
- 3 ft
- Dimensions (W x H x D)
- 2.72 x 5.5 x 2.47 in
- Material, housing
- NEMA 1, plenum-rated rugged plastic, IP40
- Degree of protection
- IP40
