GQD121.1P | Damper Actuator | Spring Return | 24 VAC/DC | On/Off | 20 lb-in | Siemens

OpenAir™ GQD Series Electric Damper Actuator, rotary, spring return, 20 lb-in (2 Nm), 24 Vac/dc, 2-position control, 30 sec run time, plenum rated

Siemens | GQD121.1P

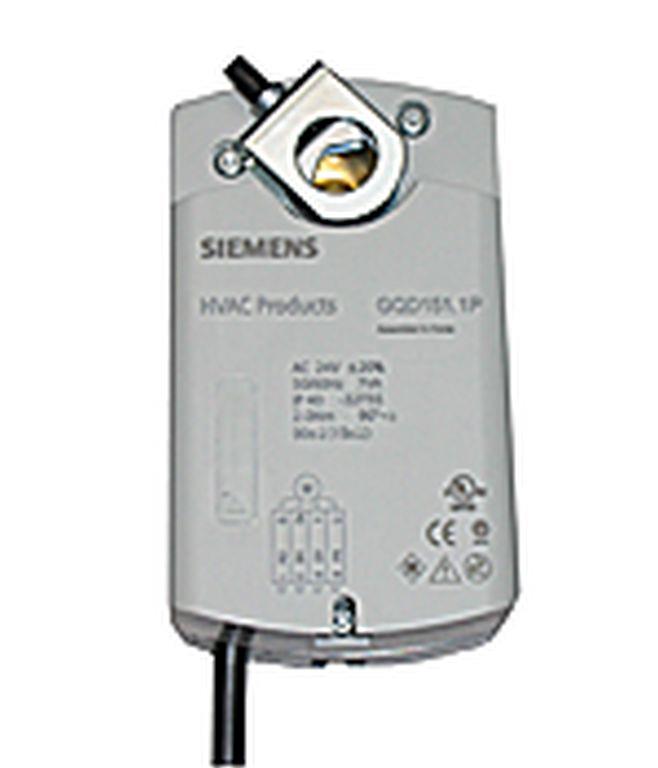

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GQD121.1P
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens GQD121.1P Documents

Datasheet(OpenAir GQD Series. Spring Return. Rotary. Electronic Damper. 20 lb-in (2 Nm) Submittal Sheet)Datasheet(OpenAir GQD Series Spring Return. 20 lb-in (2 Nm). Rotary. Electronic Damper Acutators Technical Instructions)Datasheet(OpenAir Damper Actuator Spring Return Electronic Damper Actuators Competitive Wiring Guide)Declaration of conformity(GAP GQD Actuators Declaration of Conformity)Installation instruction(OpenAir GQD Series SR Rotary Electronic Damper Actuators Installation Instructions) Installation Instructions More Info

Overview

Details for GQD121.1P

Damper Actuator | Spring Return | 24 VAC/DC | On/Off | 20 lb-in

OpenAir™ GQD Series Electric Damper Actuator, rotary, spring return, 20 lb-in (2 Nm), 24 Vac/dc, 2-position control, 30 sec run time, plenum rated

Specifications

Control or Fire/Smoke Type
Control Damper
Torque
20 lb-in
Positioning time
Open:30 s, Close:15 s
Position feedback
No
Power consumption
Running: 6.5 VA /4.5 W, Holding: 4 VA / 2.5 W
Ambient humidity, operation
95 % r.h.
Angular rotation
90°
Operating voltage
19.2…28.8 V24 V#AC/DC
Frequency
50/60 Hz
Cable length
3 ft
Dimensions (W x H x D)
2.72 x 5.5 x 2.47 in
Material, housing
NEMA 1, plenum-rated rugged plastic, IP40
Degree of protection
IP40
