GPC166.1P | Damper Actuator | Spring Return | 24 VAC/DC | 0-10Vdc / 2-10Vdc | 35 lb-in | SW | Siemens

OpenAir GPC Series Electric Damper Actuator, spring return, 35 lb-in. For use on economizer dampers and small control dampers

Siemens | GPC166.1P

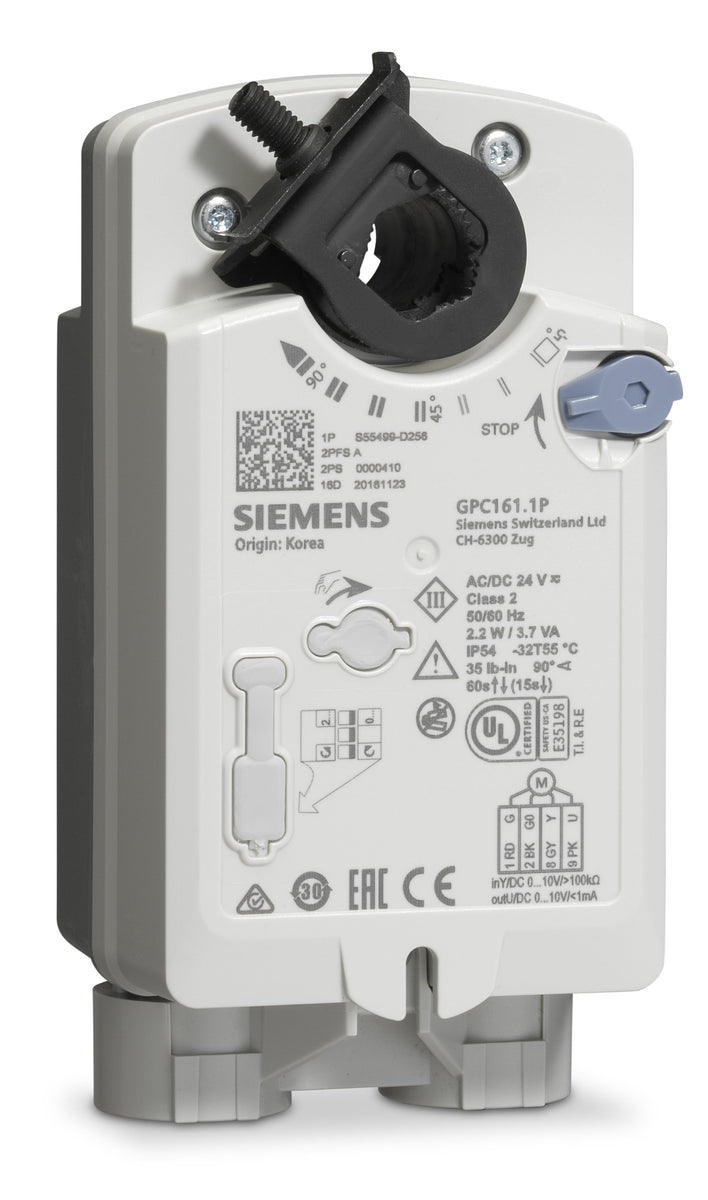

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GPC166.1P
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens GPC166.1P Documents

Datasheet(OpenAir GPC Series Spring Return. 35 lb-in (4 Nm). Rotary Electronic Damper Actuators Technical Instructions)Datasheet(OpenAir GPC Series. Spring Return. 35 lb-n (4 Nm). Rotary Electronic Damper Actuators Submittal Sheet)Mounting instruction(OpenAir GPC Series. Spring Return. 35 lb-in (4 Nm) Electronic Damper Actuators Installation Instructions) Installation Instructions More Info

Overview

Details for GPC166.1P

Damper Actuator | Spring Return | 24 VAC/DC | 0-10Vdc / 2-10Vdc | 35 lb-in | SW

Damper actuator spring return, 35 lb-in 0 (2) to 10Vdc modulating control. 24VAC/DC with fixed dual built in auxiliary switches and plenum rated. For use on economizer dampers and small control dampers

Specifications

Actuator Type
Spring return
Actuation Style
Rotary
Control or Fire/Smoke Type
Control Damper
Plenum or Standard Rating
Plenum
Torque
35 lb-in
Fail Safe
Yes
Control Signal
0...10Vdc / 2...10Vdc
Positioning time
Runtime for 90° 60 s
Position feedback
Yes
Power consumption
Running: 3.5 VA (2.1 W), Holding: 2.8 VA (1.7 W)
Ambient temperature, operation
-25 to 130 °F, -32 to 55 °C
Angular rotation
90°
Operating voltage
24 VAC, 24 VDC
Supply Voltage
24 VAC/DC
Frequency
50/60 Hz
Auxiliary Switch
Yes
Auxiliary switch
2
Cable length
3 ft
Dimensions (W x H x D)
2.83 x 5.61 x 2.48 in
Material, housing
NEMA 1, Plenum rated rugged plastic
