GMA131.1U | Damper Actuator | Spring Return | 24 VAC/DC | Floating | 62 lb-in | Siemens

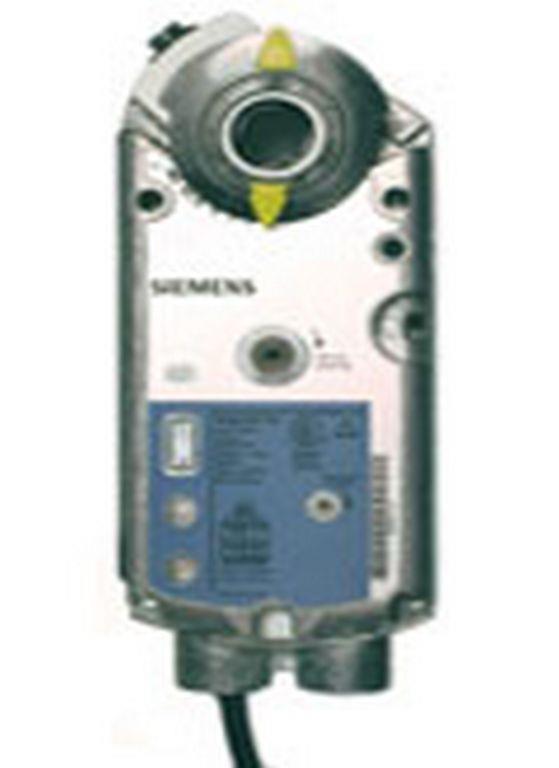

OpenAir GMA Series Electric Damper Actuator, spring return, 62 lb-in

Siemens | GMA131.1U
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GMA131.1U

Overview

Details for GMA131.1U

Damper Actuator | Spring Return | 24 VAC/DC | Floating | 62 lb-in

OpenAir™ GMA Series Electric Damper Actuator, rotary, spring return, 62 lb-in (7 Nm), 24 Vac/dc, floating control, 90 sec run time

Specifications

Control or Fire/Smoke Type
Control Damper
Torque
62 lb-in
Positioning time
Open:90 s, Close:15 s
Position feedback
No
Power consumption
Running: 5 VA / 3.5 W, Holding: 4 VA / 3 W
Ambient humidity, operation
95 % r.h.
Angular rotation
90°
Operating voltage
19.2…28.8 V24 V#AC/DC
Frequency
50/60 Hz
Cable length
3 ft
Dimensions (W x H x D)
3.25 x 8.38 x 2.38 in
Material, housing
NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
Degree of protection
IP54
