GJD226.1U | Damper Actuator | Spring Return | 120 VAC | On/Off | 20 lb-in | SW | Siemens
Fire and Smoke Damper Actuator 20 lb-in 2-position control , Spring Return, 120VAC compatible with built in Electronic Fuse Link capability with two fixed built-in auxiliary switches. For use with combination fire and smoke dampers. Designed to meet UL555S.

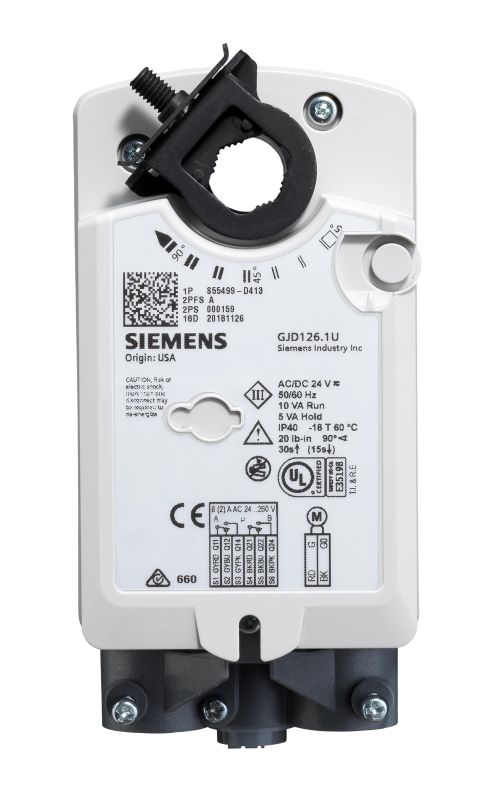

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GJD226.1U
Documents and manuals
Siemens GJD226.1U Documents
Datasheet(OpenAir GJD Series Electronic Damper Actuator for UL Listed Fire/Smoke and Smoke Control Dampers Technical Instructions)Datasheet(OpenAir GJD Series Electronic Damper Actuators for UL Listed Fire/Smoke and Smoke Control Dampers Submittal Sheet)Declarations and Certificates(Damper Actuator GAP GSFS Environmental Product Declaration)Installation instruction(OpenAir GJD Series Electronic Damper Actuator Designed for UL Listed FIre/Smoke and Smoke Control Dampers Installation Instructions) Installation Instructions More Info
Overview
Details for GJD226.1U
Damper Actuator | Spring Return | 120 VAC | On/Off | 20 lb-in | SW
Specifications
- Actuator Type
- Electronic Fire and Smoke
- Actuation Style
- Rotary
- Control or Fire/Smoke Type
- Fire/Smoke Control Damper
- Electronic Fusible Link (EFL)
- YES
- Plenum or Standard Rating
- Standard
- Torque
- 20 lb-in
- Fail Safe
- Yes
- Spring return function
- Spring return function
- Control Signal
- 2-position
- Positioning time
- Operating: 30 s, Closing (power loss) with spring return: Typical 15 s
- Position feedback
- No
- Power consumption
- Running: 10 VA / 5 W, Holding: 5 VA / 3 W
- Ambient temperature, operation
- -18…55 °C; 0…130 ºF
- Angular rotation
- 95°
- Operating voltage
- 120 VAC
- Supply Voltage
- 120 VAC
- Frequency
- 50/60 Hz
- Auxiliary Switch
- Yes
- Auxiliary switch
- 2
- Cable length
- 3 ft
- Dimensions (W x H x D)
- 2.83 x 5.61 x 2.48 in
- Material, housing
- NEMA 1, plenum-rated plastic
- Standard
- UL60730; cUL CSA 60730; CE conformity for Residential, Commercial, and Industrial environments
