GIB164.1U | Damper Actuator | Non-Spring Return | 24 VAC | 0-10 Vdc | 310 lb-in | SW | Siemens
OpenAir™ GIB Series Electric Damper Actuator, rotary, non-spring return, 310 lb-in (35 Nm), 24 Vac/dc, 0 to 10 Vdc control, 125 sec run time, adjustable span and offset, dual auxiliary switches

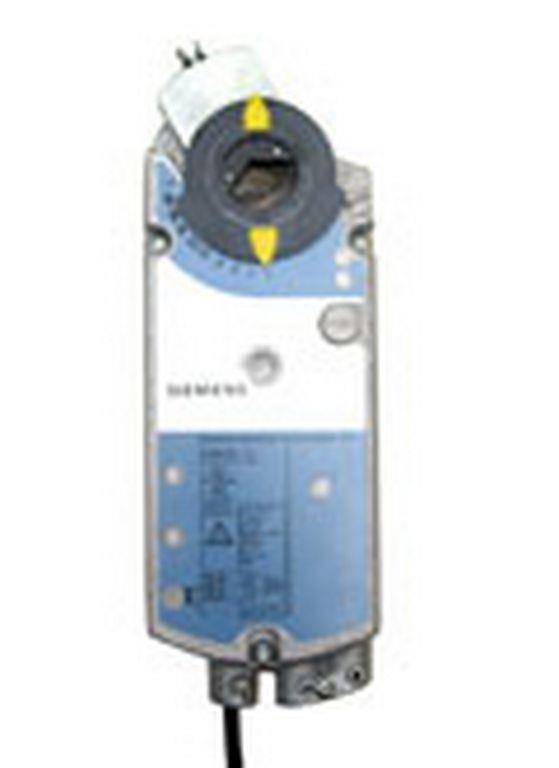

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GIB164.1U
Documents and manuals
Siemens GIB164.1U Documents
Datasheet(OpenAir™ GIB Series NSR Damper . Submittal Sheet)Datasheet(OpenAir GBB / GIB Series Electronic Damper Actuators Non Spring Return. 24 Vac Modulating Control Technical Instructions)Datasheet(OpenAir Damper Actuator Spring Return Electronic Damper Actuators Competitive Wiring Guide)Declaration of conformity(GAP Med LVD Declaration of Conformity)Installation instruction(OpenAir GBB / GIB Series Non Spring Return Rotary Electronic Damper Actuators Installation Instructions)Other datasheet(Accessories and spare parts for air damper actuators ASC... ASK..)Dimension Drawings(Rotary air damper actuator without spring return GBB..) Installation Instructions More Info
Overview
Details for GIB164.1U
Damper Actuator | Non-Spring Return | 24 VAC | 0-10 Vdc | 310 lb-in | SW
OpenAir™ GIB Series Electric Damper Actuator, rotary, non-spring return, 310 lb-in (35 Nm), 24 Vac/dc, 0 to 10 Vdc control, 125 sec run time, adjustable span and offset, dual auxiliary switchesSpecifications
- Control or Fire/Smoke Type
- Control Damper
- Torque
- 310 lb-in
- Spring return function
- Non-spring return functionality
- Positioning time
- 50 Hz:150 s, 60 Hz:125 s
- Position feedback
- Yes
- Power consumption
- Running: 8 VA / 8 W, Holding: 1.1 W
- Ambient humidity, operation
- 95 % r.h.
- Angular rotation
- 90°
- Operating voltage
- 24 VAC/DC
- Frequency
- 50/60 Hz
- Auxiliary switch
- 2
- Cable length
- 3 ft
- Dimensions (W x H x D)
- 3.94 x 11.81 x 2.69 in
- Material, housing
- NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
- Degree of protection
- IP84
