GDE142.1P | Damper Actuator | Non-Spring Return | 24 VAC/DC | On/Off/Floating Point | 44 lb-in | Siemens
Damper Actuator 44 lb-in 2-position/floating control signal, non-spring return, plenum rated for low torque VAV applications and small dampers.

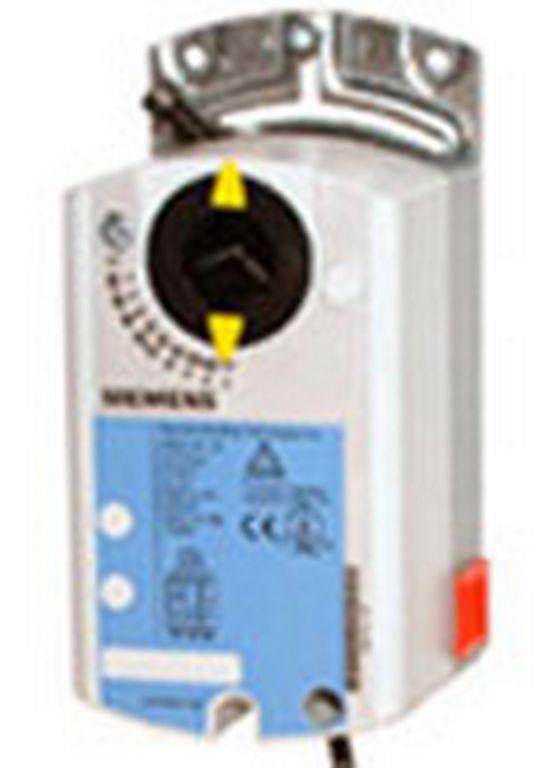

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GDE142.1P
Documents and manuals
Siemens GDE142.1P Documents
Datasheet(GDEGLB OpenAir Electronic Damper Actuators GDE Series Enhanced Non-spring Return Rotary Technical Instructions)Datasheet(GDEGLB OpenAir GDE Series. Enhanced Non-spring Return. 44 lb-in. Direct Coupled. Electronic Damper Actuators Submittal Sheet)Environmental Declaration(Damper actuator)Installation instruction(GDEGLB OpenAir Electronic Damper Actuators GDE/GLB Enhanced Rotary Non-spring Return Installation Instructions) Installation Instructions More Info
Overview
Details for GDE142.1P
Damper Actuator | Non-Spring Return | 24 VAC/DC | On/Off/Floating Point | 44 lb-in
Damper Actuator 44 lb-in 2-position/floating control signal, non-spring return, plenum rated for low torque VAV applications and small dampers.Specifications
- Control or Fire/Smoke Type
- Control Damper
- Torque
- 44 lb-in
- Positioning time
- 50 Hz:108 s, 60 Hz:90 s
- Position feedback
- No
- Power consumption
- 2.0 VA, 1.0 W
- Ambient humidity, operation
- 95 % r.h.
- Angular rotation
- 90°
- Operating voltage
- 19.2…28.8 V24 V#AC/DC
- Frequency
- 50/60 Hz
- Cable length
- 3 ft
- Dimensions (W x H x D)
- 2.7 x 6.6 x 2.4 in
- Material, housing
- NEMA 2, IP54 per EN60529, durable plastic
- Degree of protection
- IP54
