GDE131.1T | Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 44 lb-in | Siemens
OpenAir™ GDE Series Electric Damper Actuator, rotary, non-spring return, 44 lb-in (5 Nm), 24 Vac, floating control, 90 sec run time, terminal strip

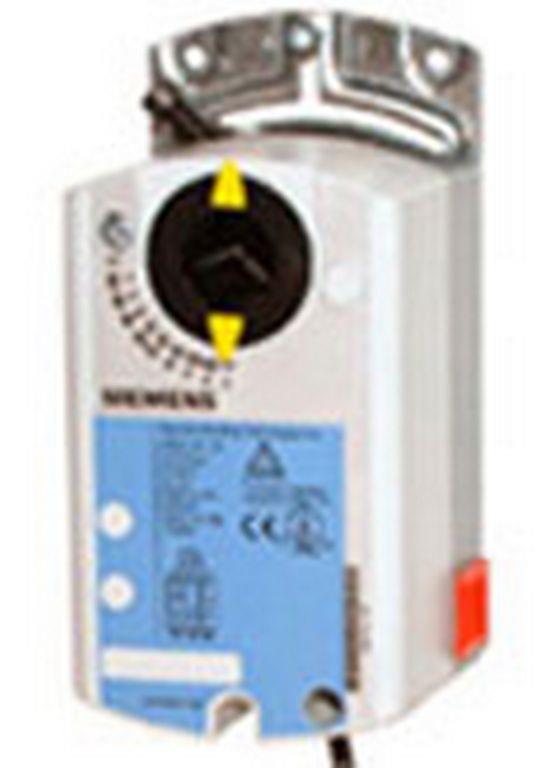

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GDE131.1T
Documents and manuals
Siemens GDE131.1T Documents
Datasheet(GDEGLB OpenAir™ GDE NSR 24 Vac. 44 lb-in Damper Submittal Sheet)Datasheet(GDEGLB OpenAir GDE/GLB Floating Control Damper Actuators Technical Instructions)Declaration of conformity(Baby Gap Declaration of Conformity)Environmental Declaration(Damper actuator)Installation instruction(GDEGLB OpenAir Electronic Damper Actuator. GDB / GLB Rotary. Non Spring Return Installation Instructions)Installation instruction(GDEGLB OpenAir Electronic Damper GDE Series Rotary with Terminal Strip Installation Instructions) Installation Instructions More Info
Overview
Details for GDE131.1T
Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 44 lb-in
OpenAir™ GDE Series Electric Damper Actuator, rotary, non-spring return, 44 lb-in (5 Nm), 24 Vac, floating control, 90 sec run time, terminal stripSpecifications
- Control or Fire/Smoke Type
- Control Damper
- Torque
- 44 lb-in
- Positioning time
- 50 Hz:108 s, 60 Hz:90 s
- Position feedback
- No
- Power consumption
- 2.3 VA
- Ambient humidity, operation
- 95 % r.h.
- Angular rotation
- 90°
- Operating voltage
- 20.4…28.8 V24 V#AC
- Frequency
- 50/60 Hz
- Dimensions (W x H x D)
- 2.88 x 6.25 x 2.38 in
- Material, housing
- NEMA 1, durable plastic
- Degree of protection
- IP54
