GCA132.1U | Damper Actuator | Spring Return | 24 VAC/DC | Floating | 160 lb-in | Siemens

OpenAir™ GCA Series Electric Damper Actuator, rotary, spring return, 160 lb-in (18 Nm), 24 Vac/dc, floating control, 90 sec run time, position feedback

Siemens | GCA132.1U

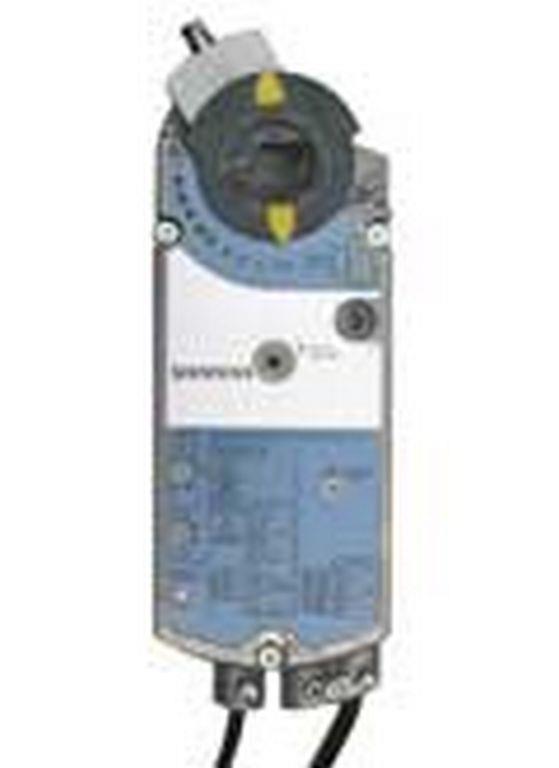

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GCA132.1U

Overview

Details for GCA132.1U

Damper Actuator | Spring Return | 24 VAC/DC | Floating | 160 lb-in

OpenAir™ GCA Series Electric Damper Actuator, rotary, spring return, 160 lb-in (18 Nm), 24 Vac/dc, floating control, 90 sec run time, position feedback

Specifications

Control or Fire/Smoke Type
Control Damper
Torque
160 lb-in
Positioning time
Open:90 s, Close:15 s
Position feedback
Yes
Power consumption
Running: 7 VA / 5 W, Holding: 5 VA / 3 W
Ambient humidity, operation
95 % r.h.
Angular rotation
90°
Operating voltage
7…28.8 V24 V#AC/DC
Frequency
50/60 Hz
Cable length
3 ft
Dimensions (W x H x D)
4.75 x 11.81 x 2.88 in
Material, housing
NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
Degree of protection
IP54
