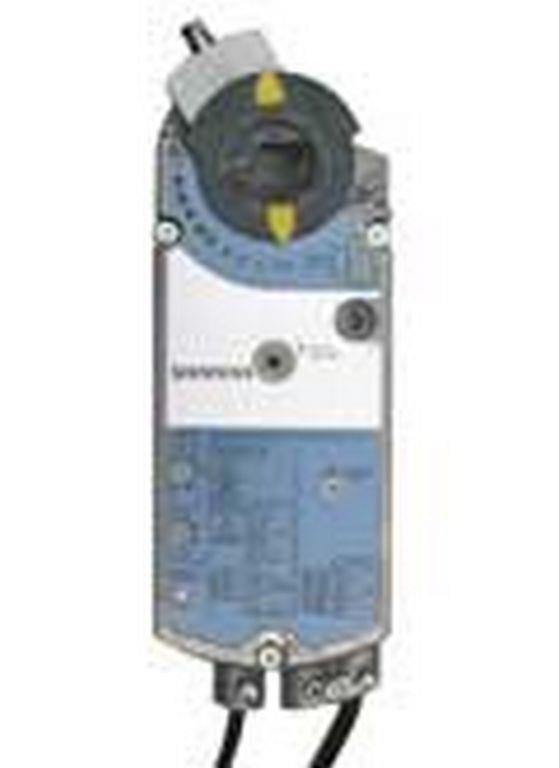

GCA121.3U | Damper Actuator | Spring Return | 24 VAC/DC | On/Off | 160 lb-in | Siemens

OpenAir GCA Series Electric Damper Actuator, spring return, 160 lb-in

Brand: SiemensSKU: GCA121.3U

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for GCA121.3U

Damper Actuator | Spring Return | 24 VAC/DC | On/Off | 160 lb-in

OpenAir GCA Series Electric Damper Actuator, spring return, 160 lb /p>

Control or Fire/Smoke Type: Control Damper
Torque: 160 lb-in
Positioning time: Open:90 s, Close:15 s
Position feedback: No
Power consumption: Running: 7 VA / 5 W, Holding: 5 VA / 3 W
Ambient humidity, operation: 95 % r.h.
Angular rotation: 90°
Operating voltage: 24 V
Frequency: 50/60 Hz
Cable length: 3 ft
Dimensions (W x H x D): 4.75 x 11.81 x 2.88 in
Material, housing: NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
