GBB163.1P | Damper Actuator | Non-Spring Return | 24 VAC | 0-10 Vdc | 221 lb-in | Siemens

Non-spring return, 221 lb-in, 24 Vac/dc, 0 to 10 Vdc control, 125 sec run time, adjustable span and offset, plenum rated

Siemens | GBB163.1P

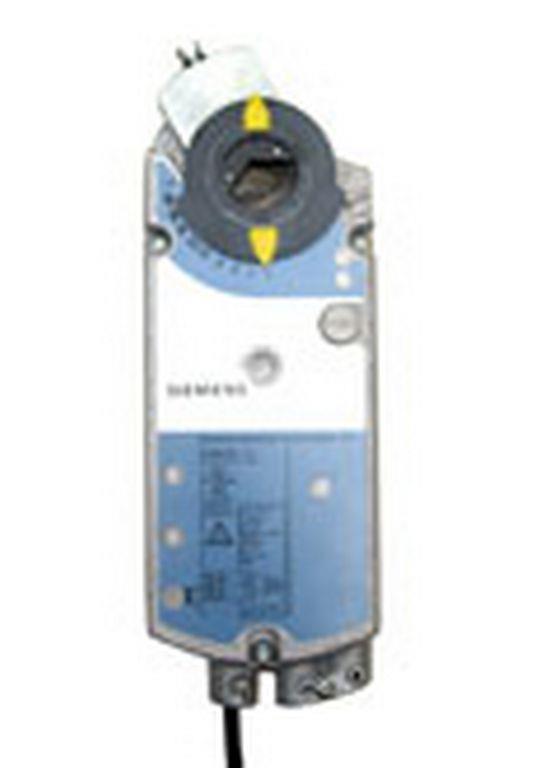

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GBB163.1P

Overview

Details for GBB163.1P

Damper Actuator | Non-Spring Return | 24 VAC | 0-10 Vdc | 221 lb-in

OpenAir™ GBB Series Electric Damper Actuator, rotary, non-spring return, 221 lb-in (25 Nm), 24 Vac/dc, 0 to 10 Vdc control, 125 sec run time, adjustable span and offset, plenum rated

Specifications

Control or Fire/Smoke Type
Control Damper
Torque
221 lb-in
Positioning time
50 Hz:150 s, 60 Hz:125 s
Position feedback
Yes
Power consumption
Running: 8 VA / 8 W, Holding: 1.1 W
Ambient humidity, operation
95 % r.h.
Angular rotation
90°
Operating voltage
7…28.8 V24 V#AC
Frequency
50/60 Hz
Cable length
3 ft
Dimensions (W x H x D)
3.94 x 11.81 x 2.69 in
Material, housing
NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
Degree of protection
IP74
