B304UB-GCA126.3U | BFV 3W CONFIG B 4"24V ON/OFF W/SW SR 50PSI | Siemens
Standard Temp Commercial Butterfly Valve Assembly, 3-way, Configuration B, 4-inch, 24 Vac, 2 position, with Switches, Spring Return, 50 psi

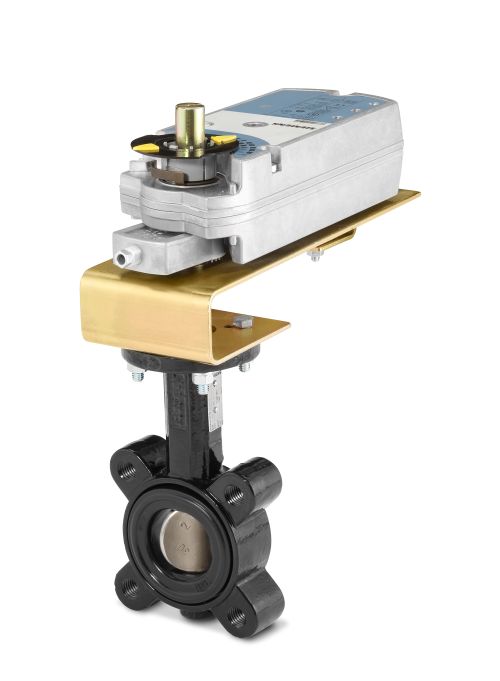

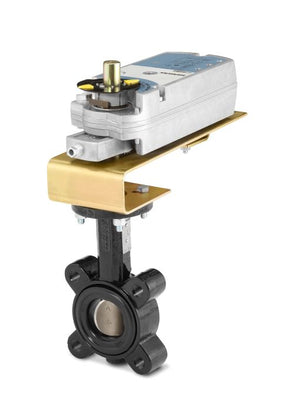

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B304UB-GCA126.3U
Documents and manuals
Siemens B304UB-GCA126.3U Documents
Datasheet(OpenAir GCA Series Spring Return 160 lb-in Electronic Damper Actuators Submittal Sheet)Datasheet(OpenAir GCA Series Spring Return 160 lb-in Electronic Damper Actuators Technical Instructions)Datasheet(Resilient Seat Butterfly Valves Technical Instructions)Datasheet(Resilient Seat Butterfly Valves Technical Specification Sheet) More Info
Overview
Details for B304UB-GCA126.3U
BFV 3W CONFIG B 4"24V ON/OFF W/SW SR 50PSI
Standard Temp Commercial Butterfly Valve Assembly, 3-way, Configuration B, 4-inch, 24 Vac, 2 position, with Switches, Spring Return, 50 psi
Specifications
- Valve Size
- 4 in
- Flow Coefficient, Cv
- 841
- Valve Type
- Three-way
- Valve Body Style
- Rotary-Butterfly
- Port Configuration
- 3-Way
- End Connection
- Lug
- Trim Material
- Stainless Steel
- Butterfly Disc
- Under Cut Disc
- Configuration details
- B
- Butterfly Heater
- NO
- Medium
- Water , Water with anti-freeze
- Max GPM
- 1176 gpm
- Pressure Class
- ANSI 125
- High temperature
- NO
- Max. Inlet Pressure (absolute), Liquid
- 250 psi
- Medium temperature
- -20…250 ºF
- Close-off Pressure
- 50 psi
- Valve Actuator Type
- Electronic
- Control Signal
- 2-position
- Fail Safe
- Yes
- Supply Voltage
- 24 VAC
- Auxiliary Switch
- Yes
- Standard
- NEMA 2
