599-10360S | 599 Series 3-way, 3/4", 16 Cv Stainless Steel Ball Valve | Siemens
This 599 Series 3-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 3/4-inch valve is 16 Cv, full-port valve without flow characterizer insert, with stainless steel ball and stem.

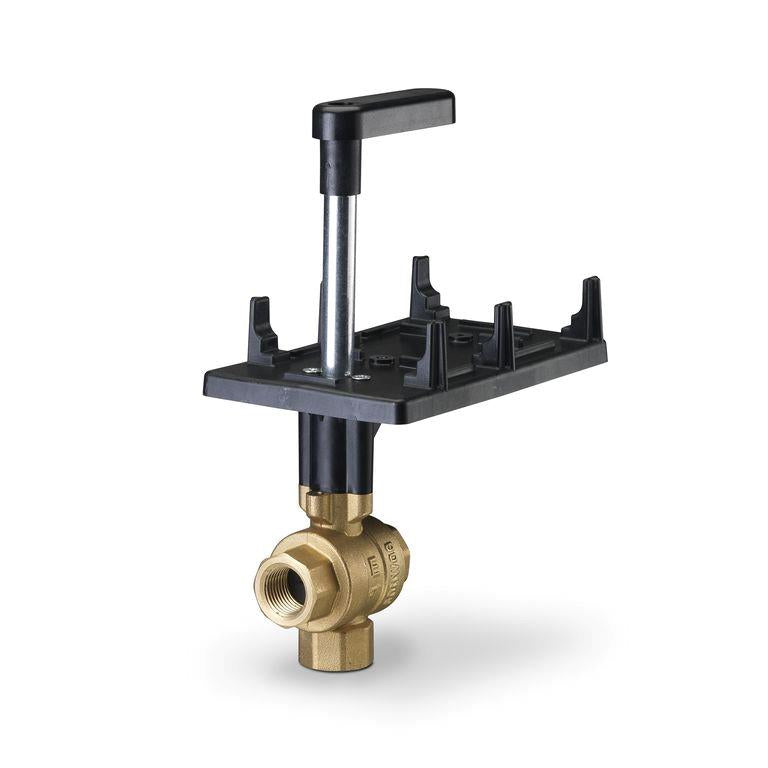

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-10360S
Documents and manuals
Overview
Details for 599-10360S
599 Series 3-way, 3/4", 16 Cv Stainless Steel Ball Valve
This 599 Series 3-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 3/4-inch valve is 16 Cv, with stainless steel ball and stem.Specifications
- Port Configuration
- 3-Way Mixing/Diverting
- End Connection
- NPT
- Material, valve body
- Brass
- Medium
- Water , Water with anti-freeze
- DN
- 20
- Medium temperature
- 35…250 ºF
- Dimensions (W x H x D)
- 6.36 x 8.62 x 2.99 in
