171A-10304S | 2W 1/2", 2.5Cv ball valve assy, stainless steel ball and stem, floating NSR | Siemens

This 599 Series 2-way ball valve with a floating control fail-in-place actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1/2-inch valve is 2.5 Cv, equal percentage flow characteristic, with stainless steel ball and stem, and an operating handle that can manually operate the valve in the event of power failure.

Siemens | 171A-10304S

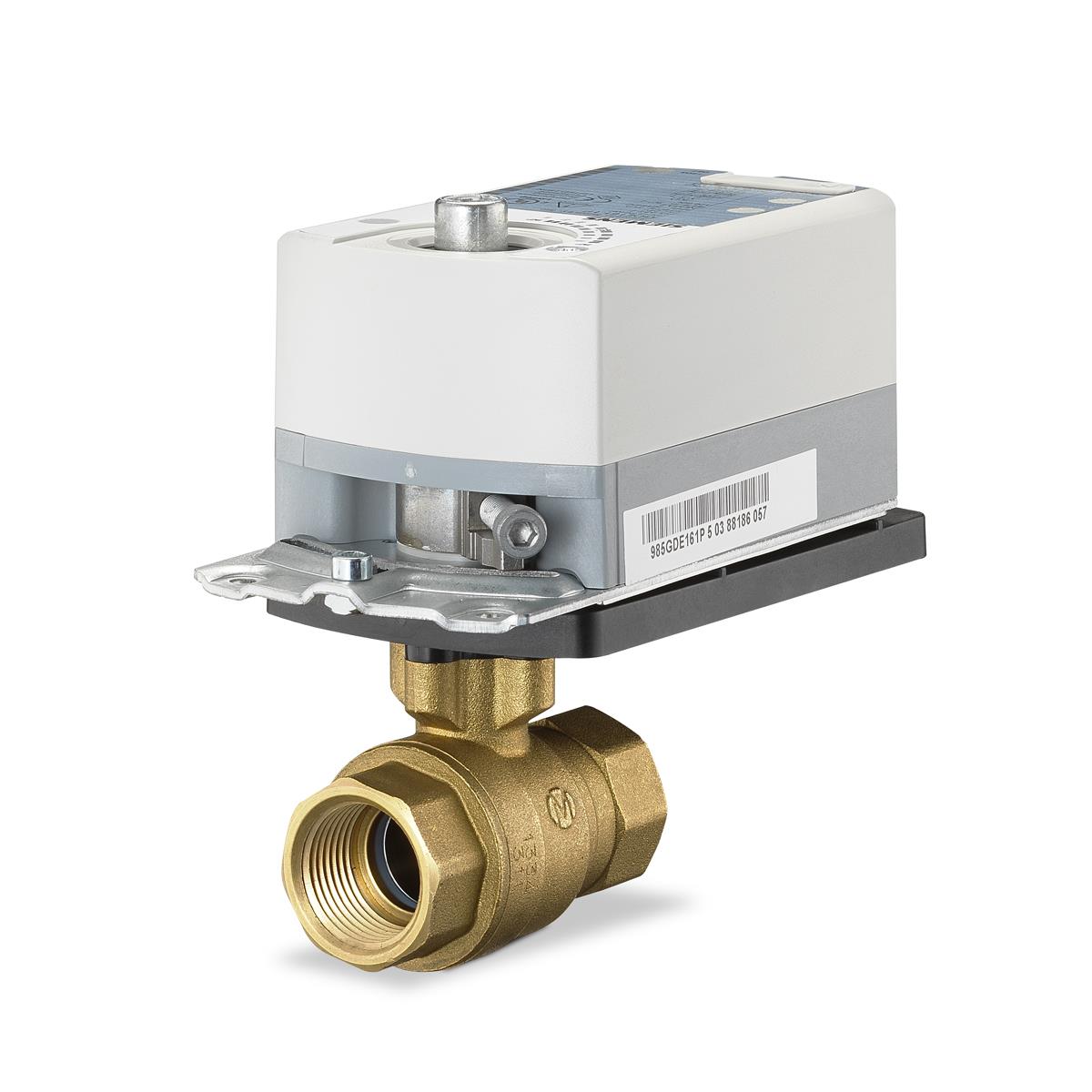

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 171A-10304S

Overview

Details for 171A-10304S

2W 1/2", 2.5Cv ball valve assy, stainless steel ball and stem, floating NSR

Specifications

Valve Type
Two-way
Valve Body Style
Rotary-Ball
Port Configuration
2-Way Normally open
End Connection
NPT
Material, valve body
Brass
Material, inside set
Ball: Stainless Steel , Ball Seals: Glass filled PTFE with EPDM O-rings , Stem: Stainless Steel , Stem Seals: EPDM O-rings
Medium
Water with anti-freeze , Water
Leakage rate
ANSI Class IV
Medium temperature
35…250 ºF
Valve Actuator Type
Electronic
Actuation Style
Rotary
Supply Voltage
24 VAC
Auxiliary Switch
No
Dimensions (W x H x D)
6.69 x 7.63 x 5.38 in
