599-10324 | 2W 1-1/2", 63 Cv ball valve, chrome-plated brass ball & brass stem | Siemens
This 599 Series 2-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-1/2-inch valve is 63 Cv, full-port valve without flow characterizer insert, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.

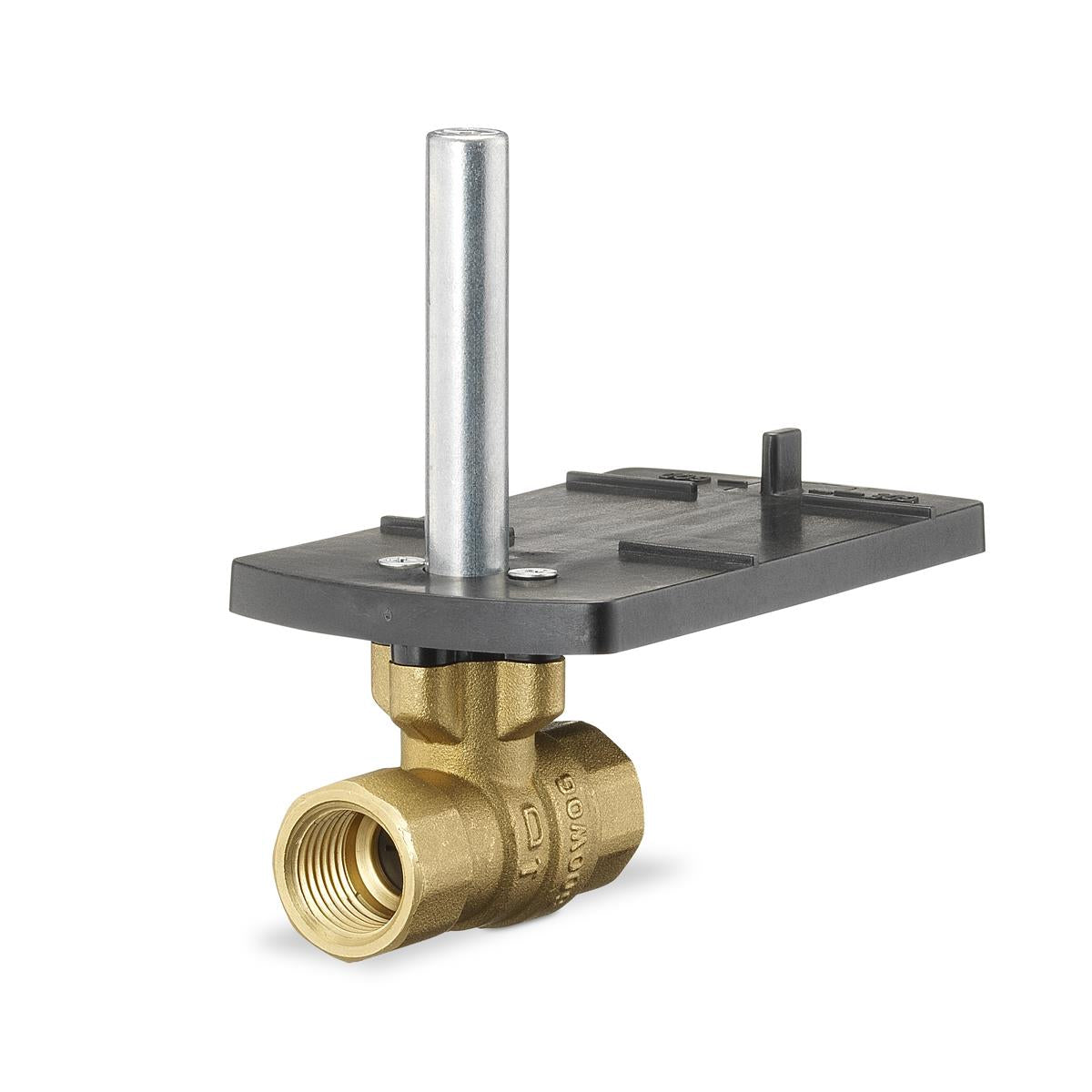

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-10324
Documents and manuals
Overview
Details for 599-10324
2W 1-1/2", 63 Cv ball valve, chrome-plated brass ball & brass stem
This 599 Series 2-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-1/2-inch valve is 63 Cv, full port, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.Specifications
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Material, valve body
- Brass
- Medium
- Water , Water with anti-freeze
- DN
- 40
- Leakage rate, class
- ANSI Class IV
- Medium temperature
- 35…250 ºF
- Dimensions (W x H x D)
- 6 x 8.81 x 5.38 in
