599-10307 | 2W 1/2", 10CV ball valve, chrome-plate brass ball, brass stem, 200psi close-off | Siemens
This 599 Series 2-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1/2-inch valve is 10 Cv, full-port valve without flow characterizer insert, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.

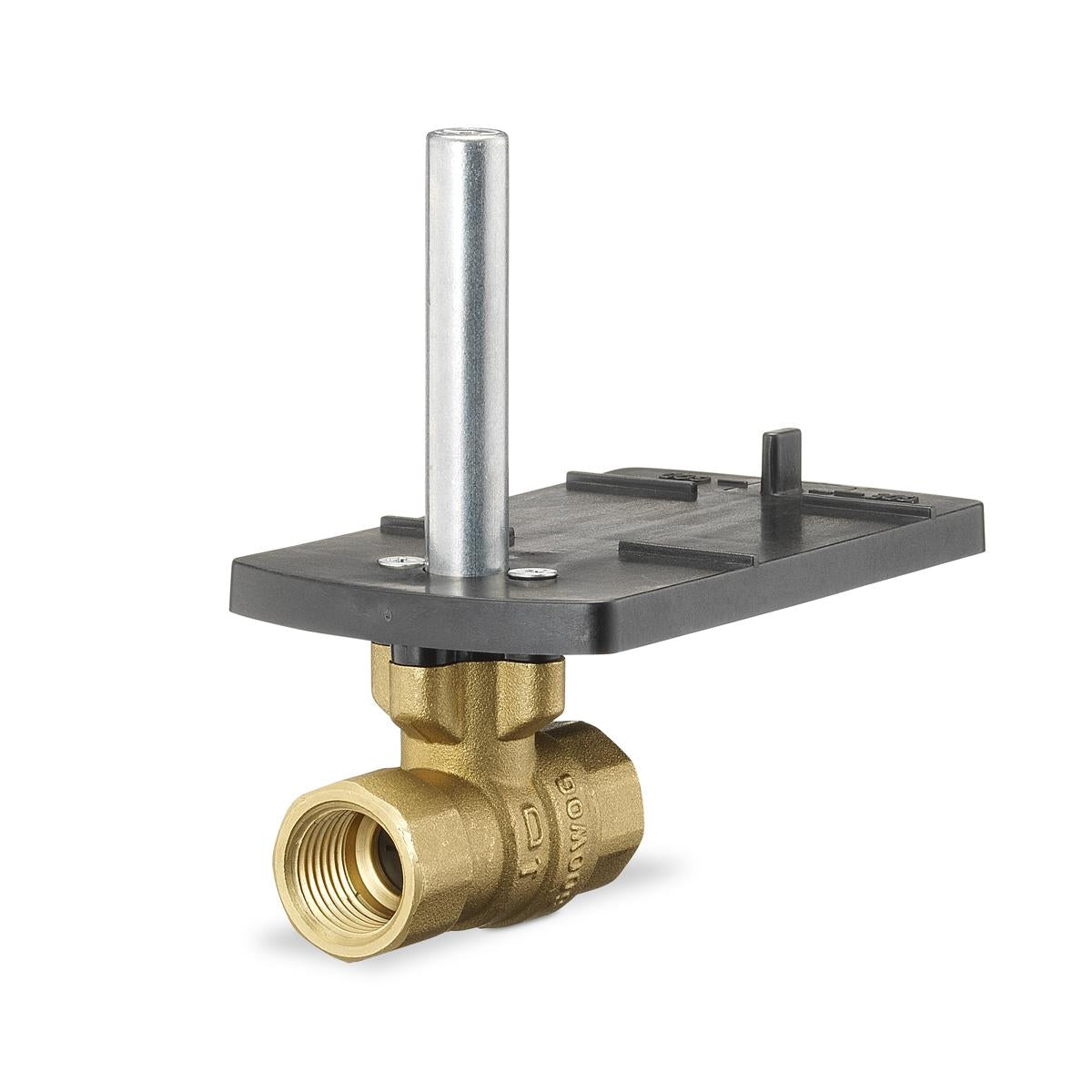

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-10307
Documents and manuals
Overview
Details for 599-10307
2W 1/2", 10CV ball valve, chrome-plate brass ball, brass stem, 200psi close-off
This 599 Series 2-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1/2-inch valve is 10 Cv, full port, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.Specifications
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Material, valve body
- Brass
- Medium
- Water , Water with anti-freeze
- DN
- 15
- Leakage rate, class
- ANSI Class IV
- Medium temperature
- 35…250 ºF
- Dimensions (W x H x D)
- 6 x 7.63 x 5.38 in
