599-06626 | Flowrite two-way 3-inch high close-off valve. ANSI 250, NC, SS trim. | Siemens

Flowrite 599 Series High Close-off 2-way valve, 3-inch flanged iron body ANSI 250, NC, Equal Percentage flow; Stainless steel trim.

Brand: SiemensSKU: 599-06626

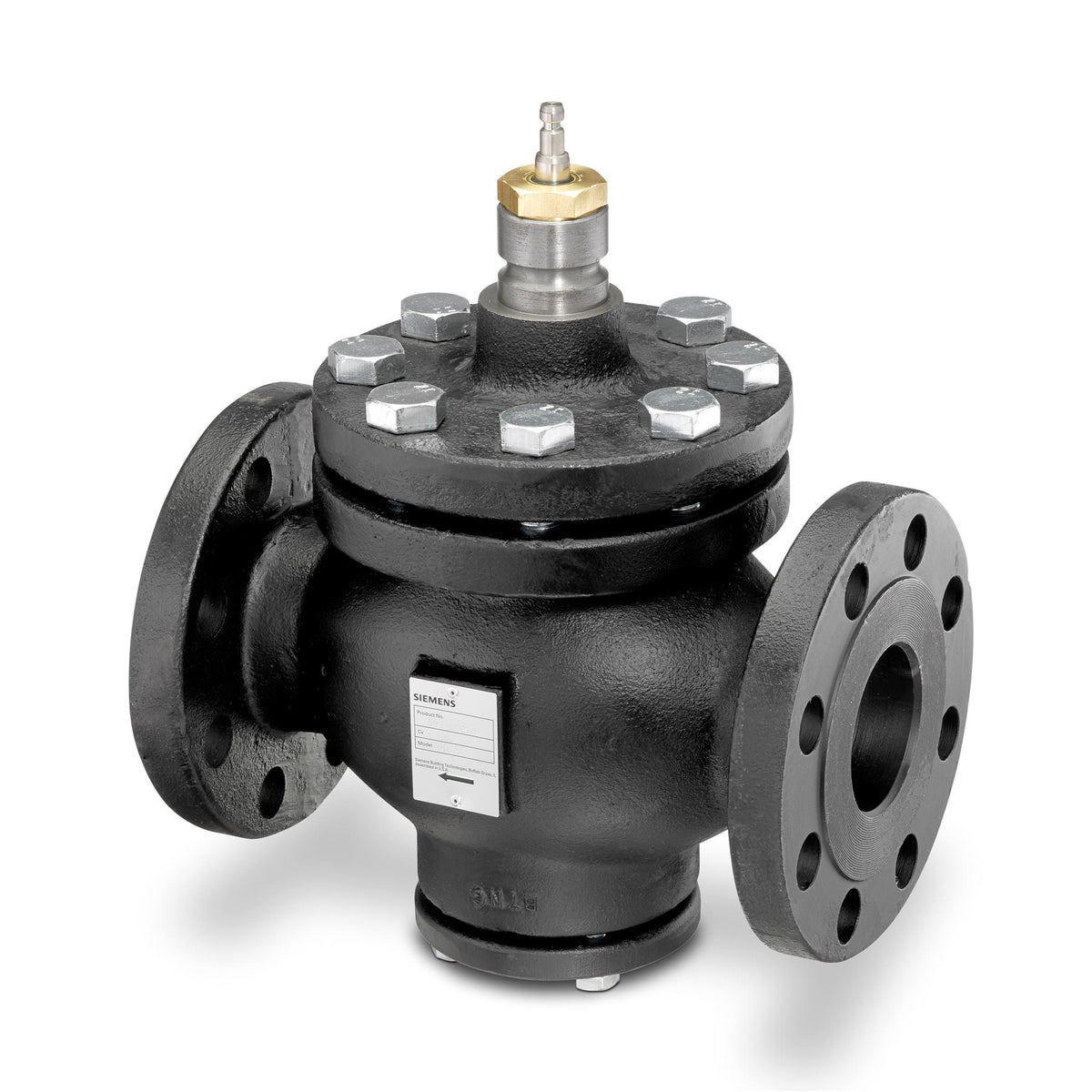

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 599-06626

Flowrite two-way 3-inch high close-off valve. ANSI 250, NC, SS trim.

Flowrite 599 Series High Close-off 2-way valve, 3-inch flanged iron body ANSI 250, NC, Equal Percentage flow; Stainless steel trim.

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: Flanged
Connecting thread: Universal bonnet for direct-coupled actuators
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
DN: 80
Leakage rate: ANSI Leakage Class IV
Leakage rate, class: ANSI Leakage Class IV
Rangeability: 100:1
Medium temperature: 20…250 ºF
Stroke: 20 mm, 0.75 " mm
Stroke, mm: 20 mm
Dimensions (W x H x D): 12.52 x 15.79 x 8.27 in
