599-06160 | Flowrite 2-1/2" Flanged, 3W Valve, 63Cv, Bronze Trim, ANSI 125 | Siemens

The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, brass trim, flanged connections, 2-1/2" line size, 63 Cv flow rate and is ANSI Class 125.

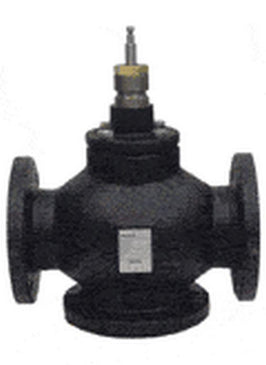

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-06160

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 599-06160 Documents

Datasheet(Flowrite 599 Series 2-1/2 to 6-Inch Valves ANSI 125 Submittal Sheet)Datasheet(Flowrite VF 599 Series. Three-Way Valves 2-1/2 to 6-inch Flanged Iron Body Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info

Overview

Details for 599-06160

Flowrite 2-1/2" Flanged, 3W Valve, 63Cv, Bronze Trim, ANSI 125

The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, bronze trim, flanged connections, 2-1/2" line size, 63 Cv flow rate and is ANSI Class 125.

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 3-Way Mixing
End Connection: Flanged
Connecting thread: Valve flange face-to-face dimensions meet ISA 75.03 standards, direct-coupled universal bonnet
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Bronze , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
DN: 65
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
Medium temperature: 20…250 ºF
Stroke: 3/4 in., 20 mm
Dimensions (W x H x D): 10.87 x 12.8 x 7.48 in
