599-06124 | Flowrite 6" Flanged, 2W Valve, NO, 400 Cv, Linear, SS, Hi Temp Pack, ANSI 250 | Siemens

Flowrite, 6" 2-Way Valve, Flanged, Iron Body, 400 Cv, Linear NO, SS Trim, High Temp Packing, ANSI Class 250; Designed to work with pneumatic or electronic actuators. For normal duty applications.

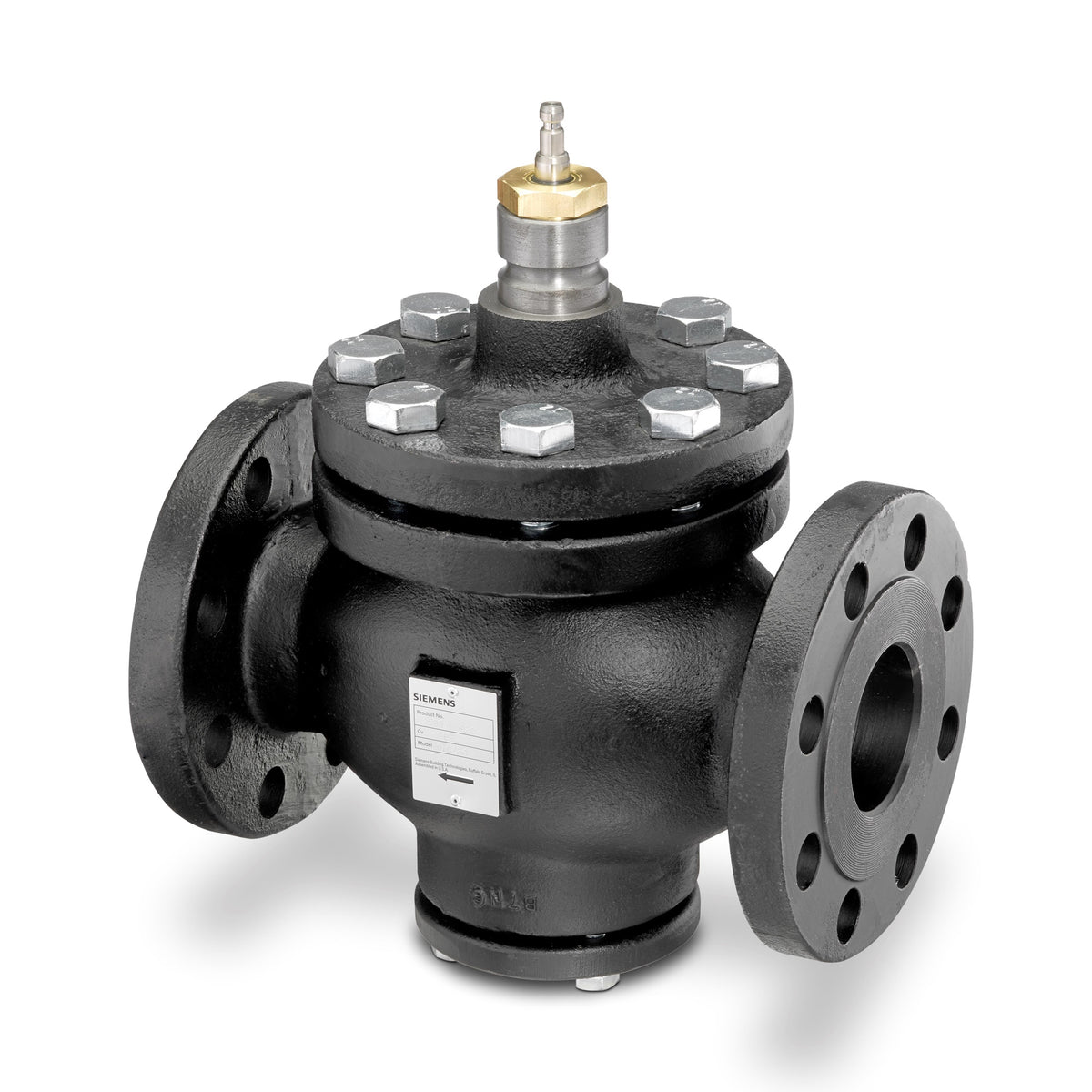

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-06124

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 599-06124 Documents

Datasheet(Flowrite VF 599 series Valves. 2-1/2 to 6-Inch. Flanged. ANSI Class 250. Iron Body Submittal Sheet)Datasheet(Flowrite VF 599 Series Two-Way Valves 2-1/2 to 6-inch Flanged Iron Body Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info

Overview

Details for 599-06124

Flowrite 6" Flanged, 2W Valve, NO, 400 Cv, Linear, SS, Hi Temp Pack, ANSI 250

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: Flanged
Connecting thread: Valve flange face-to-face dimensions meet ISA 75.03 standards; direct-coupled universal bonnet
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
Medium: Saturated steam , Water , Water with anti-freeze , Steam
DN: 150
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
Medium temperature: 20…337 ºF
Stroke: 1-1/2 in., 40 mm
Dimensions (W x H x D): 18.62 x 20.16 x 12.52 in
