599-06054 | Flowrite 6" Flanged, 2W Valve, NC, 400 Cv, Linear, SS, Hi Temp Pack, ANSI 125 | Siemens
Flowrite, 6" 2-Way Valve, Flanged, Iron Body, 400 Cv, Linear NC, SS Trim, High Temp Packing, ANSI Class 125; Designed to work with pneumatic or electronic actuators. For normal duty applications.

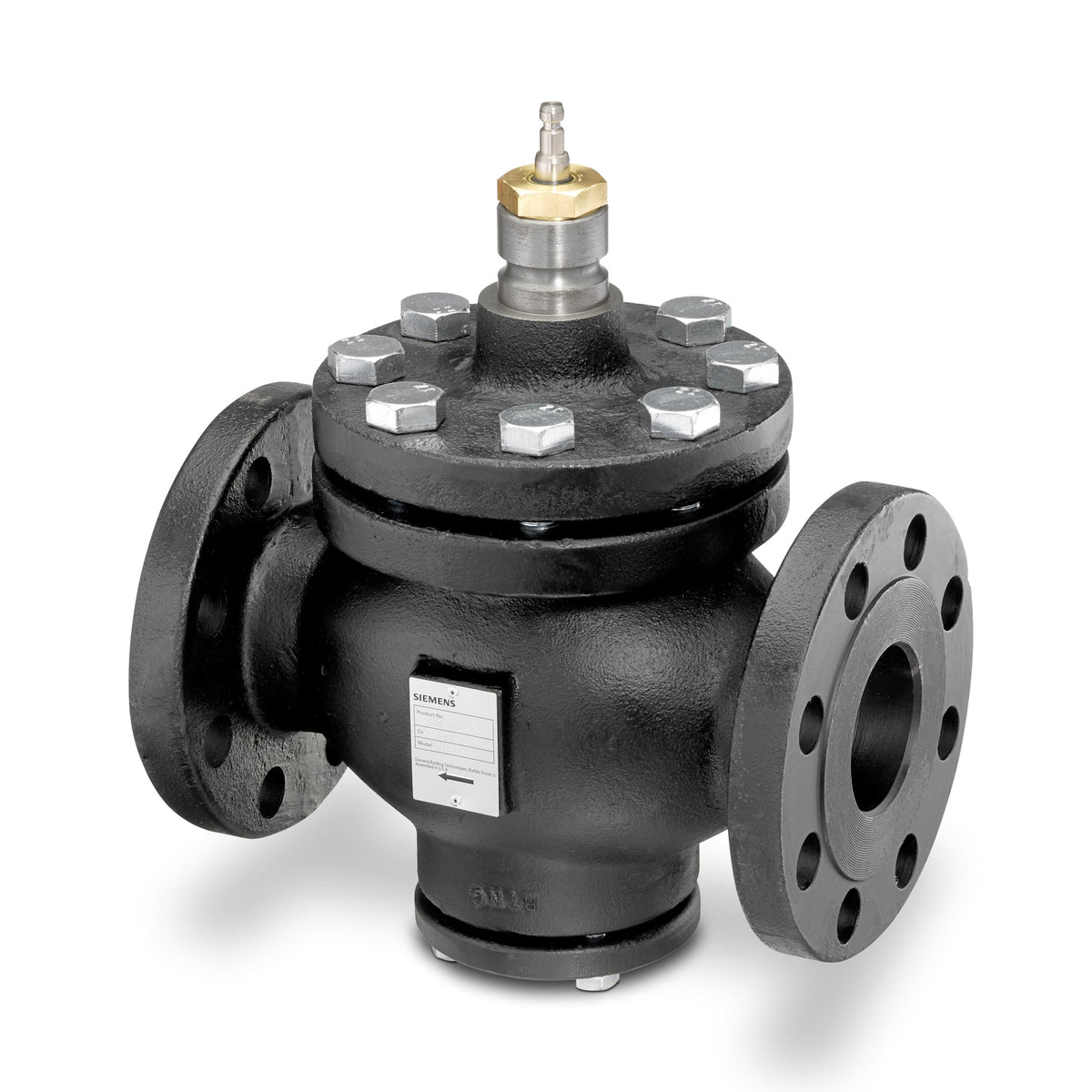

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06054
Documents and manuals
Siemens 599-06054 Documents
Datasheet(Flowrite VF 599 Series Two-Way Valves 2-1/2 to 6-inch Flanged Iron Body Technical Instructions)Datasheet(Cast Iron Flange Dimensions for 2-1/2 through 6-inch Valves TB 248. Technical Bulletin)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin) More Info
Overview
Details for 599-06054
Flowrite 6" Flanged, 2W Valve, NC, 400 Cv, Linear, SS, Hi Temp Pack, ANSI 125
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally closed
- End Connection
- Flanged
- Connecting thread
- Valve flange face-to-face dimensions meet ISA 75.03 standards; direct-coupled universal bonnet
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
- Medium
- Saturated steam , Water , Water with anti-freeze , Steam
- DN
- 150
- Leakage rate
- Class IV (0.01% of Cv)
- Rangeability
- >100:1
- Medium temperature
- 20…337 ºF
- Stroke
- 1-1/2 in., 40 mm
- Dimensions (W x H x D)
- 17.76 x 20.43 x 10.98 in
