599-04314-15 | PICV, 1-1/4 inch, Normally Open, 15 GPM max. flow preset | Siemens

Pressure Independent Control Valve, 1-1/4 inch, Normally Open, preset to 15 GPM maximum flow (field adjustable)

Siemens | 599-04314-15

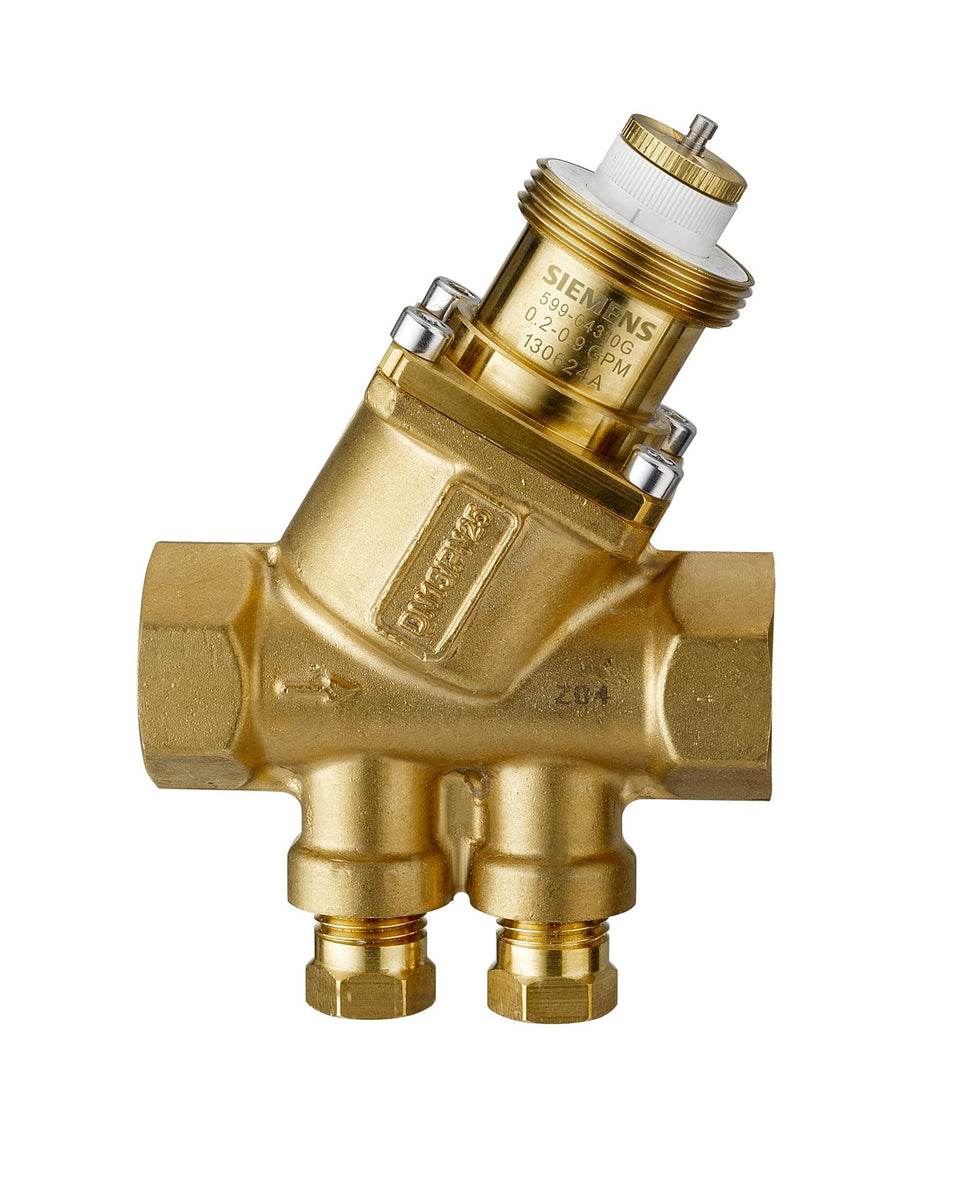

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04314-15
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens 599-04314-15 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions) More Info

Overview

Details for 599-04314-15

PICV, 1-1/4 inch, Normally Open, 15 GPM max. flow preset

Pressure Independent Control Valve, 1-1/4 inch, Normally Open, preset to 15 GPM maximum flow (field adjustable)

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally open
End Connection
NPT
Connecting thread
Internal NPT thread
Material, valve body
Brass
Material, inside set
Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
Medium
Water , Water with anti-freeze
Max GPM
18 gpm
DN
32
Min GPM
3 gpm
Preset GPM
15 gpm
Leakage rate
ANSI Class IV (0.01%)
Rangeability
≥ 100:1
Medium temperature
34…248 ºF
Stroke
5.5 mm
Dimensions (W x H x D)
2.56 x 5.49 x 4.17 in
