599-03115 | Flowrite 1-1/4" 2-Way Valve, NO, 16Cv, Equal Percentage, SS Trim, FxF, ANSI 250 | Siemens

Flowrite, 1-1/2" 2-Way Valve, 16 Cv, Equal Percentage, NO, F×F, SS Trim, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, No tools required for installation.

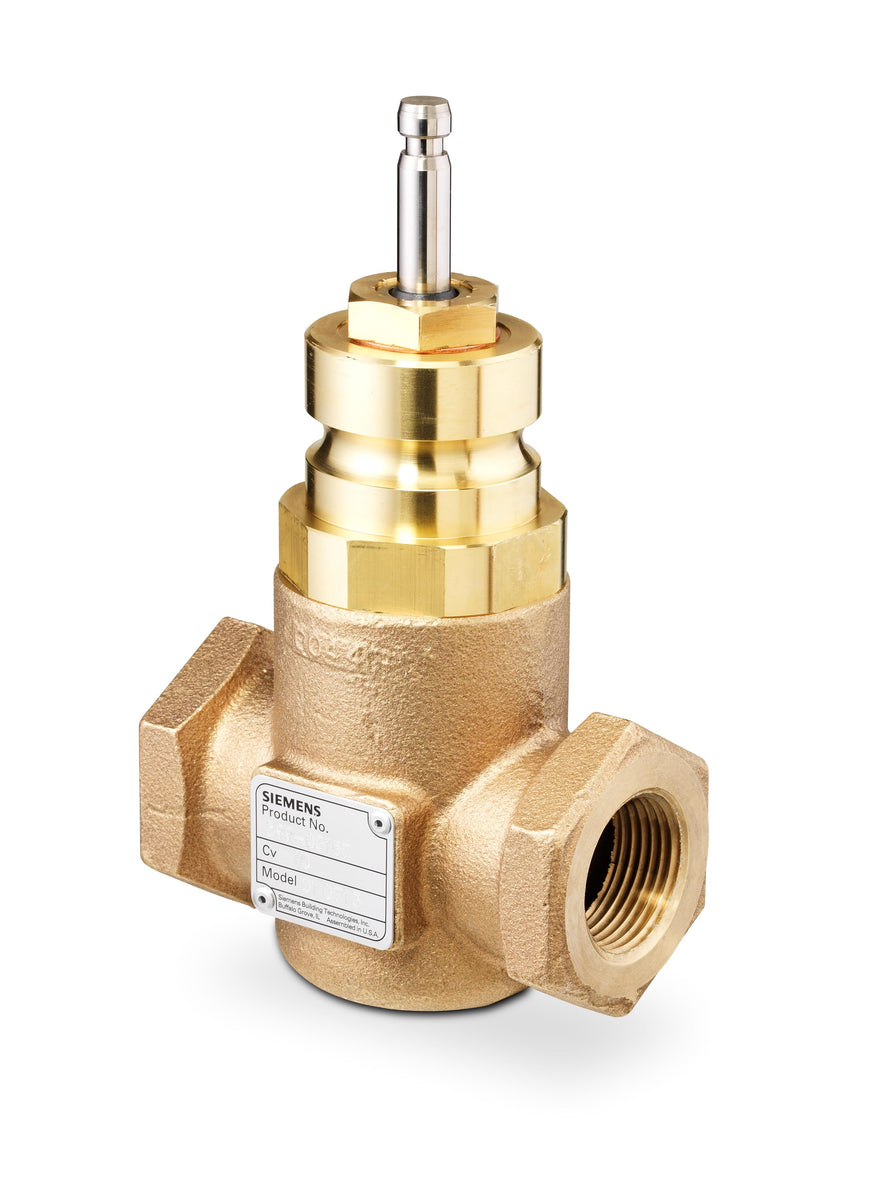

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-03115

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 599-03115 Documents

Datasheet(Flowrite 599 Series 2-way Valves 1/2 to 2-Inch Bronze Body. Technical Instructions)Datasheet(Flowrite Valve and Selection TB 255. Technical Bulletin) More Info

Overview

Details for 599-03115

Flowrite 1-1/4" 2-Way Valve, NO, 16Cv, Equal Percentage, SS Trim, FxF, ANSI 250

Flowrite, 1 1/4" 2-Way Valve, 16 Cv, Equal Percentage, NO, F×F, SS Trim, ANSI Class 250, Designed to work with pneumatic or electronic actuators, Direct-coupled universal bonnet, No tools required for installation.

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: FxF
Connecting thread: NPT, direct-coupled universal bonnet
Material, valve body: UNS CA 844 bronze
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium: Saturated steam , Water , Water with anti-freeze , Steam
DN: 40
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
Medium temperature: 20…250 ºF
Stroke: 3/4 in., 20 mm
Dimensions (W x H x D): 5.12 x 5.94 x 2.36 in
