544-089 | Surface Mount Temperature Sensor (Pipe), 1K Ohm Platinum RTD (375 Alpha) | Siemens

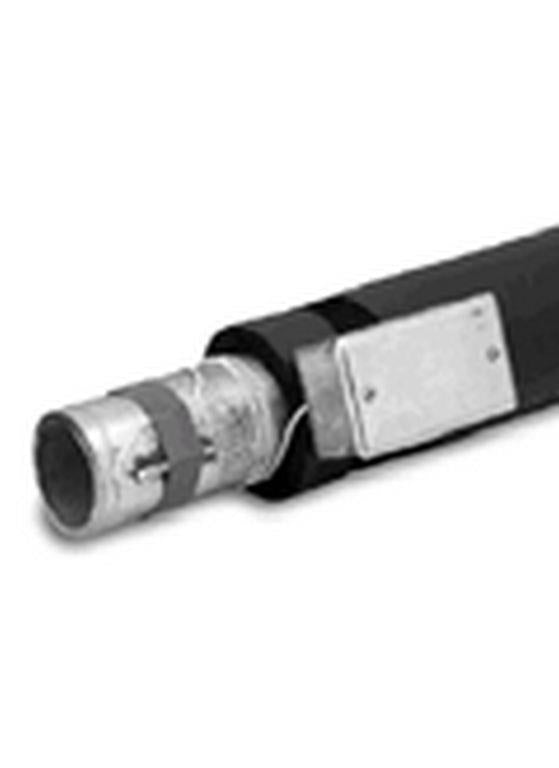

This Surface Mount RTD Sensor provides input for cost-effective, accurate temperature sensing for all controllers that accept a 1000 ohm platinum RTD input. It has a temperature range of -40 to 240 degrees Fahrenheit and the 2" x 4" metal box is attached to a pipe using nylon straps (included).

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 544-089

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 544-089 Documents

Datasheet(Surface Mount Temperature Sensors Technical Specification Sheet)Installation instruction(OBSOLETE Surface Mount Temperature Sensor 1K ohm RTD Installation Instructions) Installation Instructions More Info

Overview

Details for 544-089

Surface Mount Temperature Sensor (Pipe), 1K Ohm Platinum RTD (375 Alpha)

Specifications

Analog outputs: Pt RTD, 1k Ohm, 375a
Measuring range: -40 to 240 °F
Measurement accuracy: +/-0.54°F @ 32 °F
Sensor: RTD with leads and 2 x 4 in. box
Material, housing: Stainless steel housing, 2-inch × 4-inch metal box with clamps
Sensing element: Pt1000
