366-02052 | MT Series 2W Valve assy ANSI 250 NO Mod Eq Pct 1/2" FxUM 1Cv 24V float SR | Siemens
This Powermite 599 MT Series Valve Assembly features a 24V, spring return, electro-mechanical actuator with floating control. The 1/2 in. line size, 2-way normally open assembly has a 1 Cv flow rate, stainless steel trim, FxUM connection, and a modified equal percentage flow characteristic. The assembly is ANSI Class 250 with a Class IV (0.01% of Cv) leakage rate. A typical application of the Powermite 599 Assembly is the control of hot or chilled water.

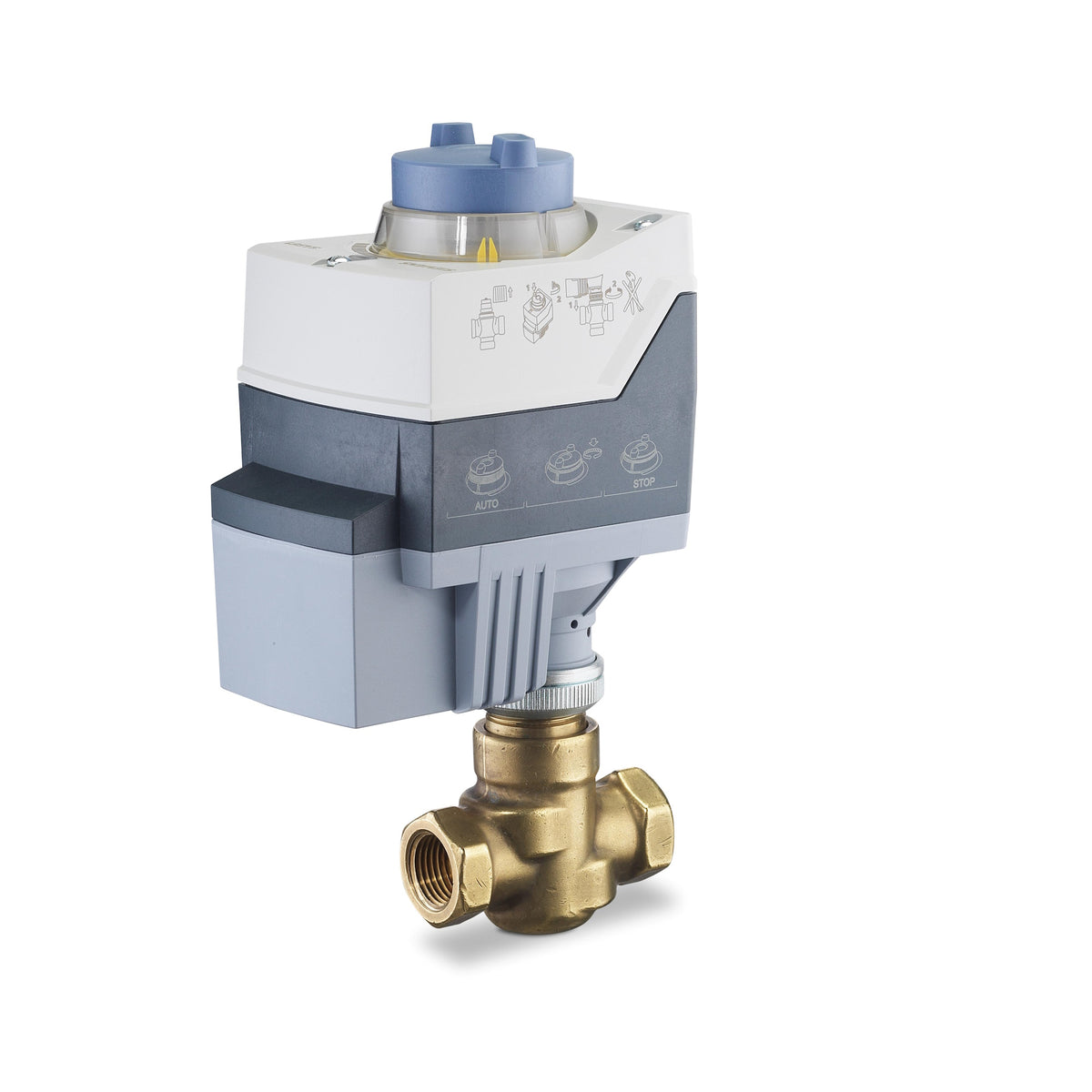

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 366-02052
Documents and manuals
Siemens 366-02052 Documents
Datasheet(Powermite MT Series Terminal Unit 2-Way Valves Submittal Sheet)Datasheet(Powermite 599 Series MT Series Terminal Unit 2-way Valves Technical Instructions)Datasheet(Powermite 599 MT Series SAS Electronic Valve Actuator 24 Vac or 24 Vdc Proportional Control Technical Instructions)Datasheet for Actuator(Powermite MT Series Terminal Unit 2-Way Valves Submittal Sheet) More Info
Overview
Details for 366-02052
MT Series 2W Valve assy ANSI 250 NO Mod Eq Pct 1/2" FxUM 1Cv 24V float SR
Specifications
- Valve Type
- Two-way
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- FxUM
- Connecting thread
- Direct-coupled universal bonnet
- Material, valve body
- Brass
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: Ethylene propylene O-ring , Seat: metal-to-metal
- Leakage rate
- Class IV (0.01% of Cv)
- Permissible operating pressure
- Max. differential pressure for modulating service: Liquid=50 psi (345 kPa); Steam=15 psi (103 kPa)
- Medium temperature
- 35…250 ºF
- Stroke
- 7/32 in
- Valve Actuator Type
- Electronic
- Normally Open/Normally Closed
- Normally Open
- Supply Voltage
- 24 VAC
- Positioning time
- 30 s
- Power consumption
- 3.4 VA
