365-02078 | MT Series 3W Valve assy ANSI 250 Mix Linear 3/4" FxF 6.3Cv 24V 0-10V/4-20mA SR | Siemens
This Powermite 599 MT Series Valve Assembly features a 24V, spring return, electro-mechanical actuator with 0-10V or 4-20 mA proportional control. The 3/4 in. line size, 3-way mixing assembly has a 6.3 Cv flow rate, stainless steel trim, and a linear flow characteristic. The assembly is ANSI Class 250 with a Class IV (0.01% of Cv) leakage rate. A typical application of the Powermite 599 Assembly is the control of hot or chilled water.

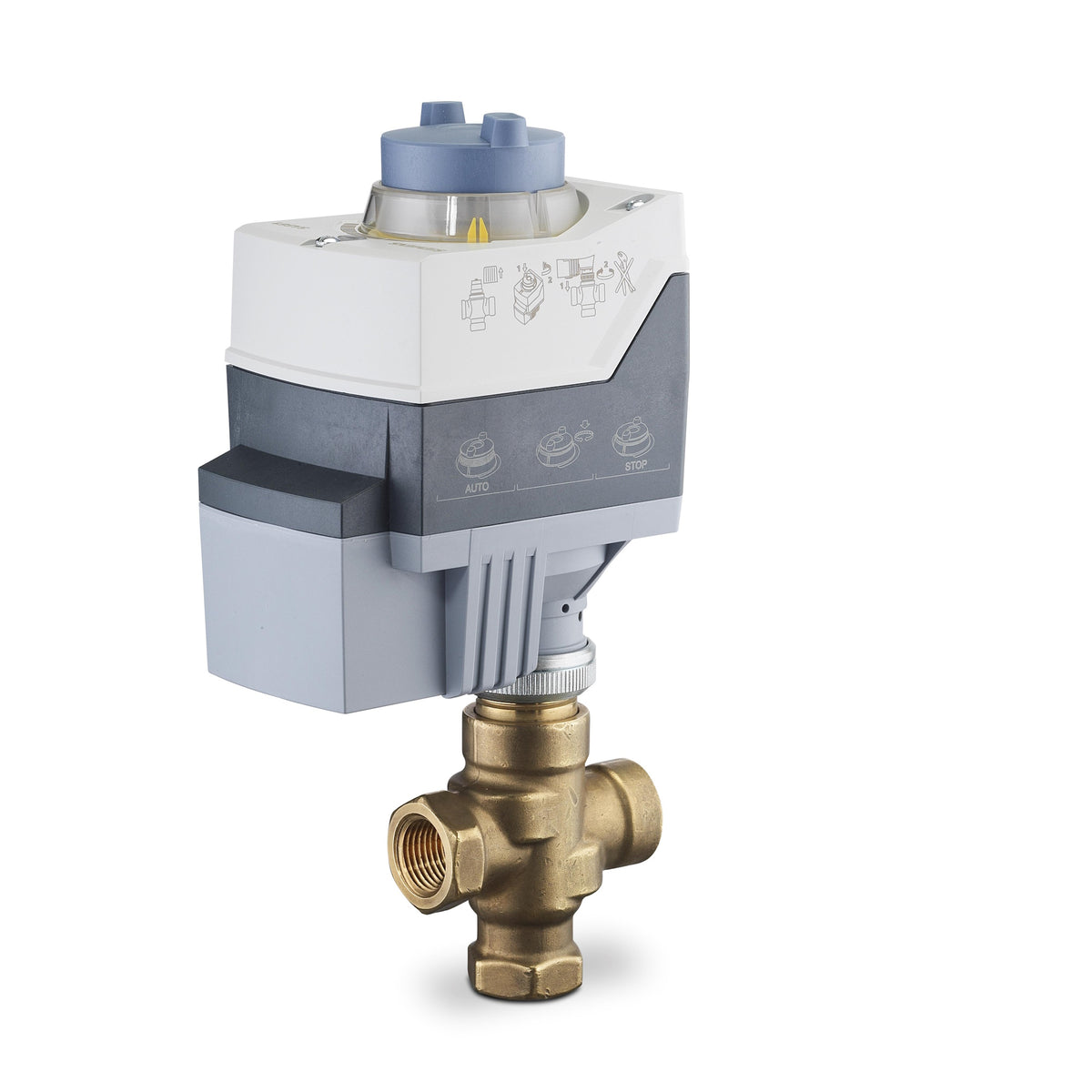

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 365-02078
Documents and manuals
Siemens 365-02078 Documents
Datasheet(Flowrite VF 599 series Valves. 2-1/2 to 6-Inch. Flanged. ANSI Class 250. Iron Body Submittal Sheet)Datasheet(Powermite 599 Series MT Series Terminal Unit Three-way Valves. Technical Instructions)Datasheet(Powermite 599 MT Series SAS Electronic Valve Actuator 24 Vac or 24 Vdc Proportional Control Technical Instructions)Datasheet for Actuator(Powermite MT Series Terminal Unit 2-Way Valves Submittal Sheet) More Info
Overview
Details for 365-02078
MT Series 3W Valve assy ANSI 250 Mix Linear 3/4" FxF 6.3Cv 24V 0-10V/4-20mA SR
Specifications
- Valve Type
- Three-way
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 3-Way Mixing
- End Connection
- NPT
- Connecting thread
- Direct-coupled universal bonnet
- Material, valve body
- Brass
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: Ethylene propylene O-ring , Seat: metal-to-metal
- Leakage rate
- Class IV (0.01% of Cv)
- Permissible operating pressure
- Max. differential pressure for modulating service: 50 psi (345 kPa)
- Medium temperature
- 35…250 ºF
- Stroke
- 7/32 in
- Valve Actuator Type
- Electronic
- Supply Voltage
- 24 VAC
- Positioning time
- 30 s
- Power consumption
- 5.9 VA
