365-02000 | MT Series 2W Valve asy ANSI 250 NC ModEqPct 1/2" FxF 0.4Cv 24V 0-10V/4-20mA SR | Siemens

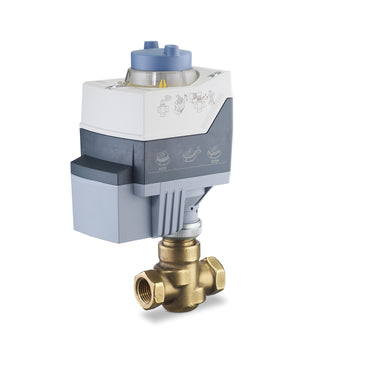

This Powermite 599 MT Series Valve Assembly features a 24V, spring return, electro-mechanical actuator with 0-10V or 4-20 mA proportional control. The 1/2 in. line size, 2-way normally closed assembly has a 0.4 Cv flow rate, brass trim, FxF connection, and a modified equal percentage flow characteristic. The assembly is ANSI Class 250 with a Class IV (0.01% of Cv) leakage rate. A typical application of the Powermite 599 Assembly is the control of hot or chilled water.

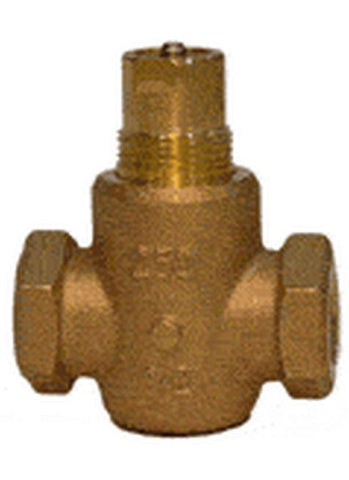

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 365-02000

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 365-02000 Documents

Datasheet(Powermite MT Series Terminal Unit 2-Way Valves Submittal Sheet)Datasheet(Powermite 599 Series MT Series Terminal Unit 2-way Valves Technical Instructions)Datasheet(Powermite 599 MT Series SAS Electronic Valve Actuator 24 Vac or 24 Vdc Proportional Control Technical Instructions)Datasheet for Actuator(Powermite MT Series Terminal Unit 2-Way Valves Submittal Sheet) More Info

Overview

Details for 365-02000

MT Series 2W Valve asy ANSI 250 NC ModEqPct 1/2" FxF 0.4Cv 24V 0-10V/4-20mA SR

Specifications

Valve Type: Two-way
Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: FxF
Connecting thread: Direct-coupled universal bonnet
Material, valve body: Brass
Material, inside set: Body Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: Ethylene propylene O-ring , Seat: metal-to-metal
Leakage rate: Class IV (0.01% of Cv)
Permissible operating pressure: Max. differential pressure for modulating service: 25 psi (173 kPa)
Medium temperature: 35…250 ºF
Stroke: 7/32 in
Valve Actuator Type: Electronic
Normally Open/Normally Closed: Normally Closed
Supply Voltage: 24 VAC
Positioning time: 30 s
Power consumption: 5.9 VA
