364-02070 | MT Series 3W Valve assy ANSI 250 Mix Linear 3/4" FxF 6.3Cv 24V 0-10V/4-20mA NSR | Siemens

This Powermite 599 MT Series Valve Assembly features a 24V, non-spring return, electro-mechanical actuator with 0-10V or 4-20 mA proportional control. The 3/4 in. line size, 3-way mixing assembly has a 6.3 Cv flow rate, brass trim, and a linear flow characteristic. The assembly is ANSI Class 250 with a Class IV (0.01% of Cv) leakage rate. A typical application of the Powermite 599 Assembly is the control of hot or chilled water.

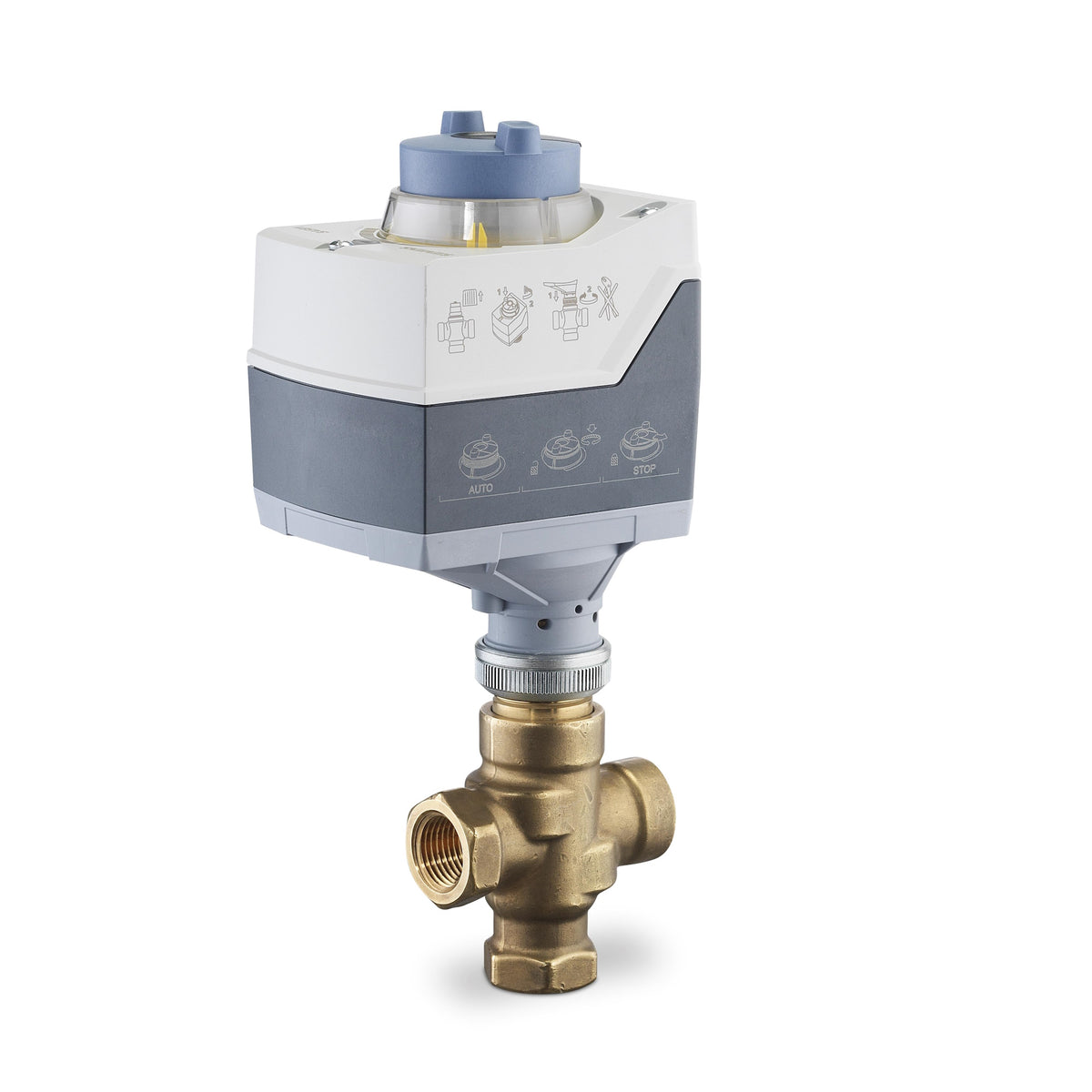

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 364-02070

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 364-02070 Documents

Datasheet(Flowrite VF 599 series Valves. 2-1/2 to 6-Inch. Flanged. ANSI Class 250. Iron Body Submittal Sheet)Datasheet(Powermite 599 Series MT Series Terminal Unit Three-way Valves. Technical Instructions)Datasheet(Powermie 599 MT Series SAS Electronic Valve Actuator. 24 Vac or 24 Vdc. Floating Control (3-Position) Technical Instructions)Datasheet for Actuator(Powermite MT Series Terminal Unit 2-Way Valves Submittal Sheet) More Info

Overview

Details for 364-02070

MT Series 3W Valve assy ANSI 250 Mix Linear 3/4" FxF 6.3Cv 24V 0-10V/4-20mA NSR

Specifications

Valve Type: Three-way
Valve Body Style: Stroke-Globe
Port Configuration: 3-Way Mixing
End Connection: NPT
Connecting thread: Direct-coupled universal bonnet
Material, valve body: Brass
Material, inside set: Body Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: Ethylene propylene O-ring , Seat: metal-to-metal
Leakage rate: Class IV (0.01% of Cv)
Permissible operating pressure: Max. differential pressure for modulating service: 25 psi (173 kPa)
Medium temperature: 35…250 ºF
Stroke: 7/32 in
Valve Actuator Type: Electronic
Supply Voltage: 24 VAC
Positioning time: 30 s
Power consumption: 5.3 VA
