331-3002 | Damper Actuator, Pneu No 4, 4" Stroke, 5-10psi, Integral Pivot, Univ Mt Kit | Siemens

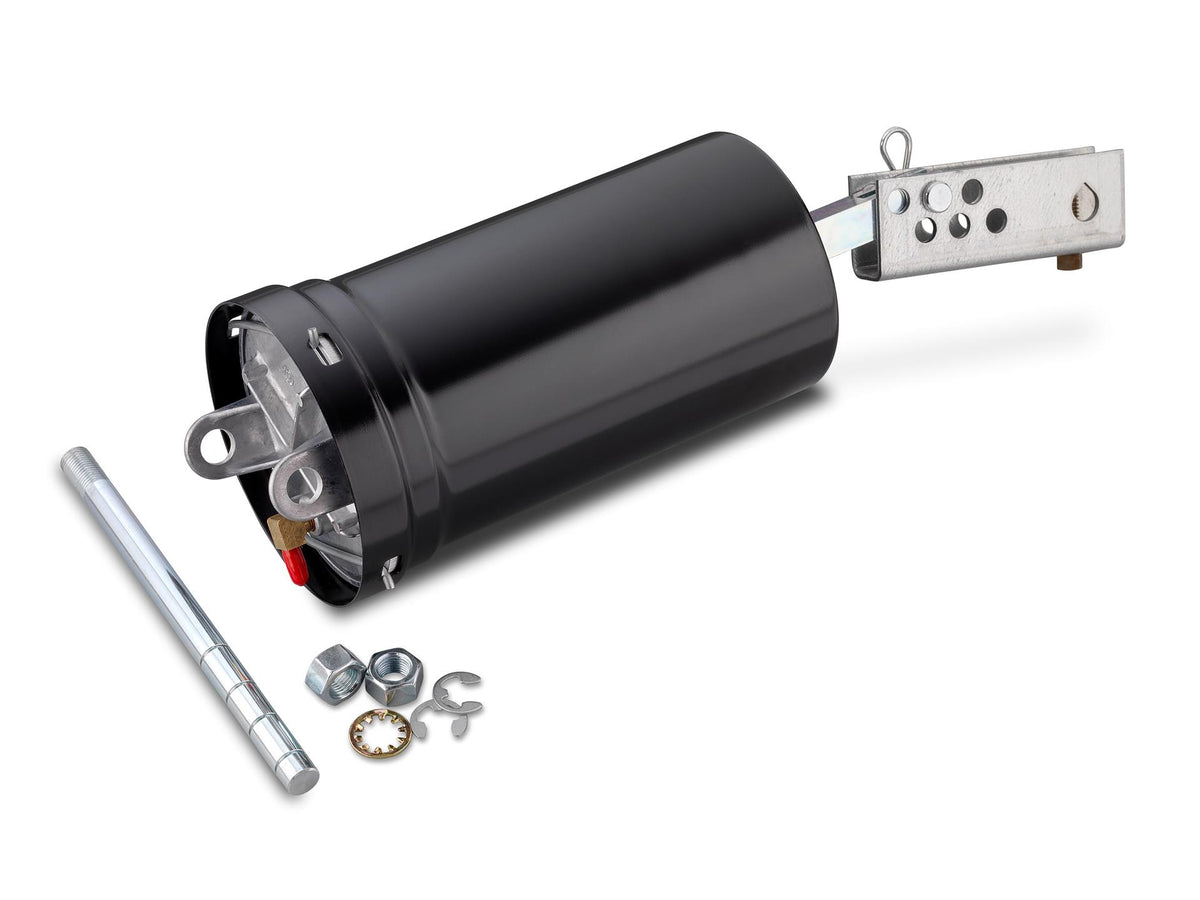

This 331 Number 4 Pneumatic Damper Actuator with integral pivot and pivot post is a rugged, metal-fabricated device that provides gradual or positive actuation of HVAC and fire/smoke dampers. This actuator has a nominal spring range of 5 to 10 psi, a replaceable diaphragm and an air connection of 1/8" NPT female with a dual barb elbow fitting for 1/4" OD tubing. Also included is an universal mounting kit that allows fixed or pivot mounting, this kit contains parts for frame mounting.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 331-3002
Documents and manuals
Siemens 331-3002 Documents
Datasheet(Powers Controls No. 4 Pneumatic Damper. Technical Instructions)Datasheet(Pneumatic Damper Actuators Submittal Sheet)Datasheet(Powers Controls Maximum Thrust Ratings of Pneumatic Damper TB 181. Technical Bulletin)Assortment / System Descriptions(Powers Pneumatic Controls. Quick Reference Guide)Installation instruction(Powers Controls No. 4 Pneumatic Damper Installation Instructions) Installation Instructions More Info
Overview
Details for 331-3002
Damper Actuator, Pneu No 4, 4" Stroke, 5-10psi, Integral Pivot, Univ Mt Kit
Specifications
- Pneumatic Model
- No. 4
- Spring Range
- 5-10 psi
- Ball Joint Connector
- NO
- Clevis
- YES
- Mounting Style
- Extended Shaft
- Pivot
- YES
- Pneumatic Bracket
- YES
- Positioning Relay
- NO
- Stroke
- 4 in
