294-06614 | Valve asy Hi Pr Close-off 2W NO 6" 400Cv EqPct SS ANSI 125, Prop El-Hyd Act SR | Siemens

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator with 1-1/2-inch stroke. The 2-way, normally open, 6-inch, 400 Cv valve assembly with 1-1/2-inch stroke is ANSI Class 125 and has an equal percentage characteristic, stainless steel trim, and flanged end connections.

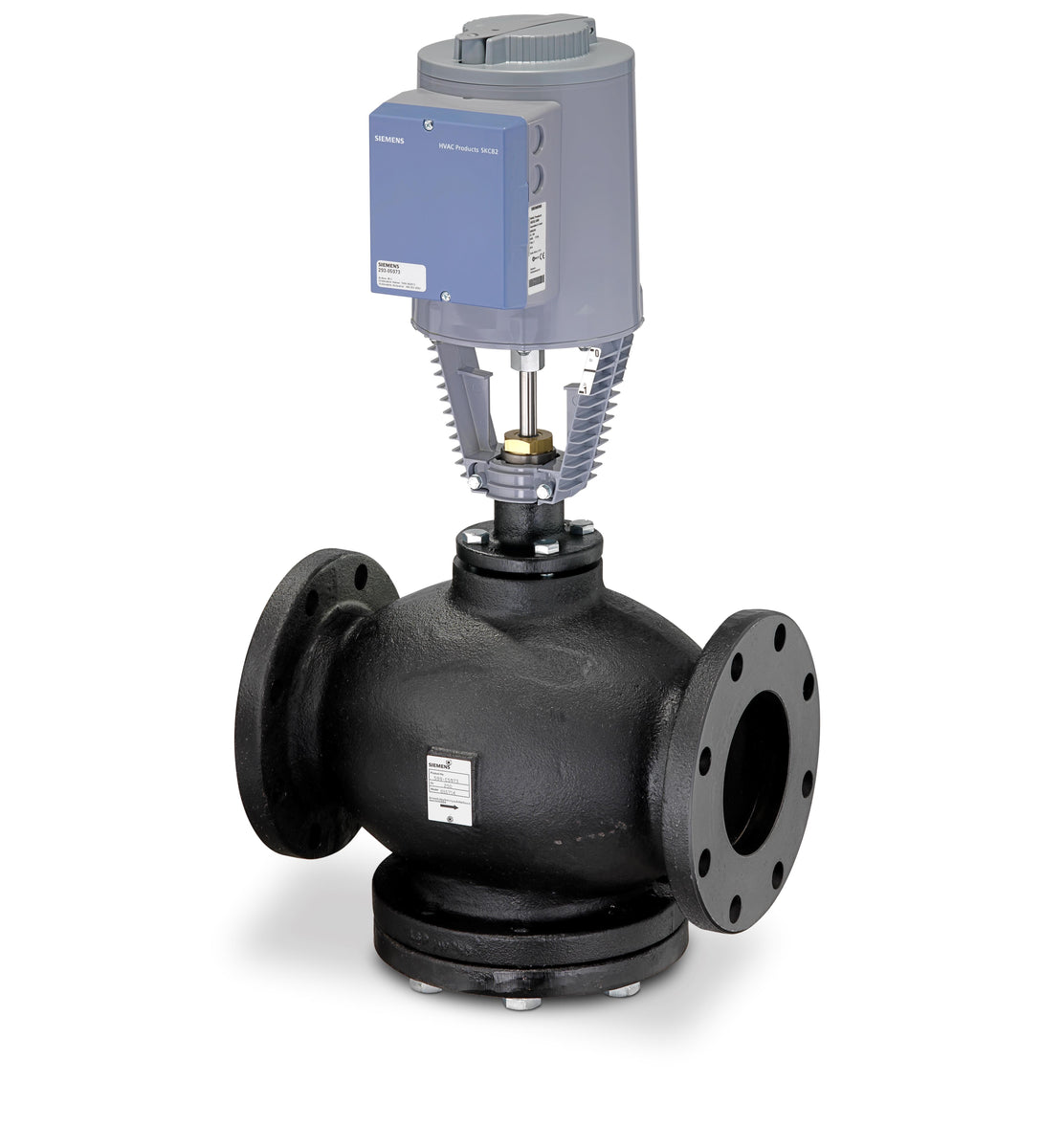

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 294-06614

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 294-06614 Documents

Datasheet(SKB and SKC Electronic Valve Proportional Control Technical Instructions)Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Installation instruction(SKB / SKC Electronic Valve Actuator Installation Instructions)Datasheet for Actuator(Electrohydraulic actuators SKC..) Installation Instructions More Info

Overview

Details for 294-06614

Valve asy Hi Pr Close-off 2W NO 6" 400Cv EqPct SS ANSI 125, Prop El-Hyd Act SR

Specifications

Valve Body Style: Stroke-Globe
End Connection: Flanged
Connecting thread: Direct-coupled universal bonnet
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
Leakage rate: Class IV (0.01% of Cv)
Leakage rate, class: ANSI Leakage Class IV
Rangeability: >100:1
High temperature: NO
Port Configuration: 2-Way Normally open
Medium temperature: 20…250 ºF
Ambient temperature, operation: 5 to 130 °F, -15 to 55 °C
Stroke: 1-1/2 in., 40 mm
Stroke, inch: 1.5 "
Stroke, mm: 40 mm
Valve Actuator Type: Electronic
Supply Voltage: 24 VAC
Positioning time: Power stroke 120 sec, Return stroke 20 sec, Spring return 20 sec
Power consumption: 28 VA
