289-06165 | Valve assy 3W Mix 2-1/2" 63Cv Eq Pct/Lin SS Trim Flanged float El-Hydrl Act SR | Siemens

Flowrite 599 Series Valve Assembly features a floating control, spring return, 24 Vac electro-mechanical actuator with 3/4-inch stroke. The 3-way, mixing, 2-1/2-inch, 63 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, stainless steel trim, and flanged end connections.

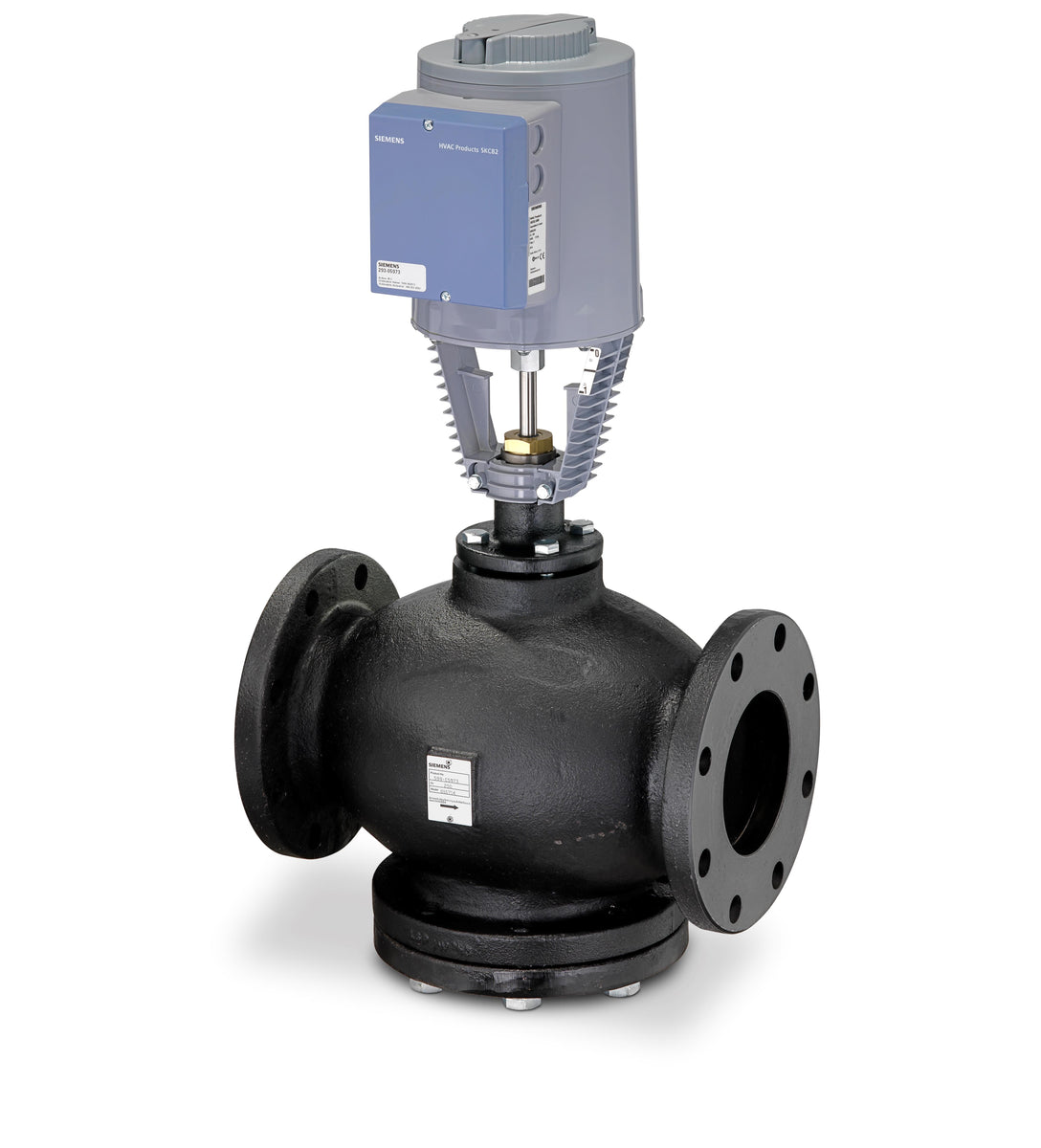

Siemens | 289-06165
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 289-06165

Overview

Details for 289-06165

Valve assy 3W Mix 2-1/2" 63Cv Eq Pct/Lin SS Trim Flanged float El-Hydrl Act SR

Specifications

Valve Body Style
Stroke-Globe
End Connection
Flanged
Connecting thread
Direct-coupled universal bonnet
Material, valve body
Cast iron ASTM A126 Class B
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
Medium
Water , Water with anti-freeze
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Port Configuration
3-Way Mixing
Medium temperature
20…250 ºF
Ambient temperature, operation
5 to 130 °F, -15 to 55 °C
Stroke
3/4 in., 20 mm
Valve Actuator Type
Electronic
Supply Voltage
24 VAC
Positioning time
Power stroke 120 sec, Return stroke 120 sec, Spring return 10 sec
Power consumption
18 VA
