287-06624 | Valve asy Hi Pr Close-off 2W NO 6" 400Cv Eq Pct SS Flange ANSI 250, 8" Pneu Act | Siemens

Flowrite 599 Series Valve Assembly features a 12-inch pneumatic actuator with factory-mounted positioner, 1-1/2-inch stroke, and 5 psi span. The 2-way, normally open, 6-inch, 400 Cv valve assembly with 1-1/2-inch stroke is ANSI Class 250 and has an equal percentage characteristic, stainless steel trim, and flanged end connections.

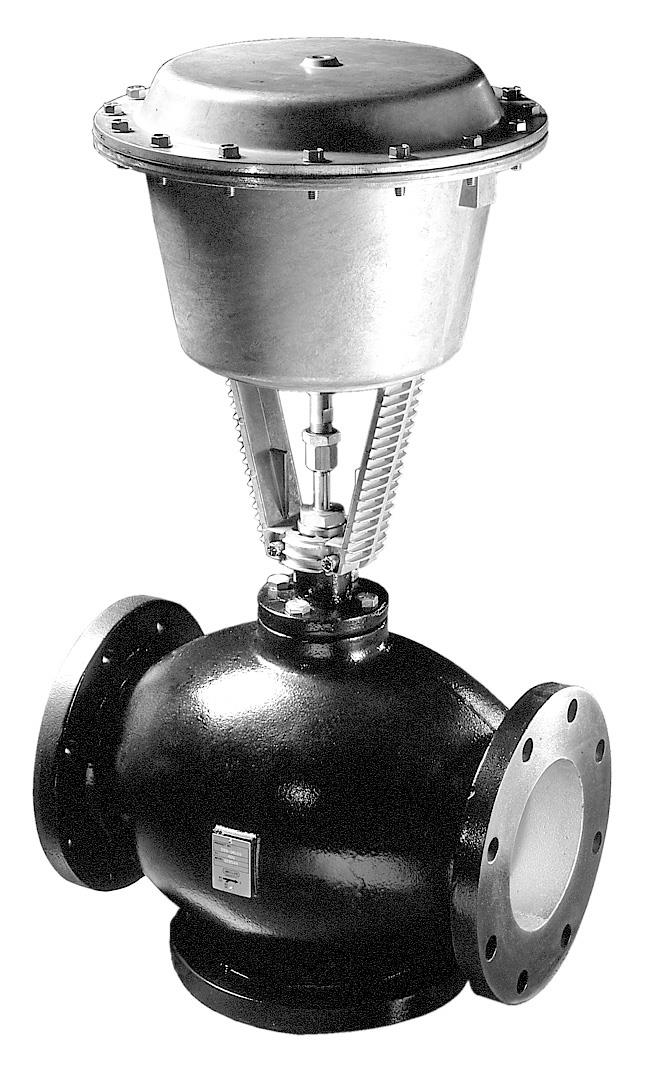

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 287-06624

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 287-06624 Documents

Datasheet(Flowrite AP 599 Series 12-inch PneumaticValve Technical Instructions)Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Installation instruction(Flowrite AP 599 Series 12-inch Pneumatic Valve Installation Instructions)Datasheet for Actuator(Flowrite AP 599 Series 12-inch PneumaticValve Technical Instructions) Installation Instructions More Info

Overview

Details for 287-06624

Valve asy Hi Pr Close-off 2W NO 6" 400Cv Eq Pct SS Flange ANSI 250, 8" Pneu Act

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: Flanged
Connecting thread: Direct-coupled universal bonnet
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
Leakage rate: Class IV (0.01% of Cv)
Leakage rate, class: ANSI Leakage Class IV
Rangeability: >100:1
High temperature: NO
Medium temperature: 20…250 ºF
Stroke: 1-1/2 in., 40 mm
Valve Actuator Type: Pneumatic
