285-06141 | Valve assy 2W NO, 3" 100Cv Lin SS Trim Flanged 12" Pneu Act w/ pos | Siemens
Flowrite 599 Series Valve Assembly features a 12-inch pneumatic actuator with factory-mounted positioner, 3/4-inch stroke, and 5 psi span. The 2-way, normally open, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 250 and has a linear characteristic, stainless steel trim, and flanged end connections.

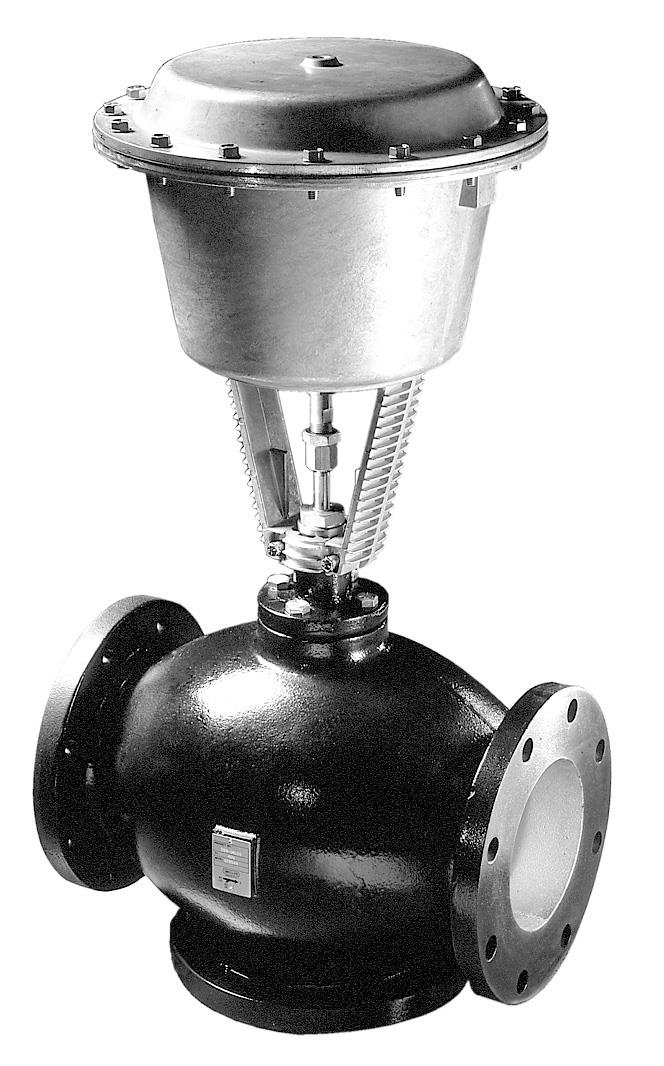

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 285-06141
Documents and manuals
Siemens 285-06141 Documents
Datasheet(Flowrite VF 599 Series Two-Way Valves 2-1/2 to 6-inch Flanged Iron Body Technical Instructions)Datasheet(Flowrite AP 599 Series 12-inch PneumaticValve Technical Instructions)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin)Datasheet for Actuator(Flowrite AP 599 Series 12-inch PneumaticValve Technical Instructions) More Info
Overview
Details for 285-06141
Valve assy 2W NO, 3" 100Cv Lin SS Trim Flanged 12" Pneu Act w/ pos
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- Flanged
- Connecting thread
- Direct-coupled universal bonnet
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
- Medium
- Saturated steam , Water , Water with anti-freeze , Steam
- Leakage rate
- Class IV (0.01% of Cv)
- Rangeability
- >100:1
- High temperature
- NO
- Medium temperature
- 20…250 ºF
- Stroke
- 3/4 in., 20 mm
- Valve Actuator Type
- Pneumatic
