283-06176 | Valve assy 3W Mix 3" 100Cv Eq Pct/Lin SS Trim Flanged 8" Pneu Act w/ pos | Siemens

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with factory-mounted positioner and 5 psi span. The 3-way, mixing, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 250 and has an equal percentage/linear characteristic, stainless steel trim, and flanged end connections.

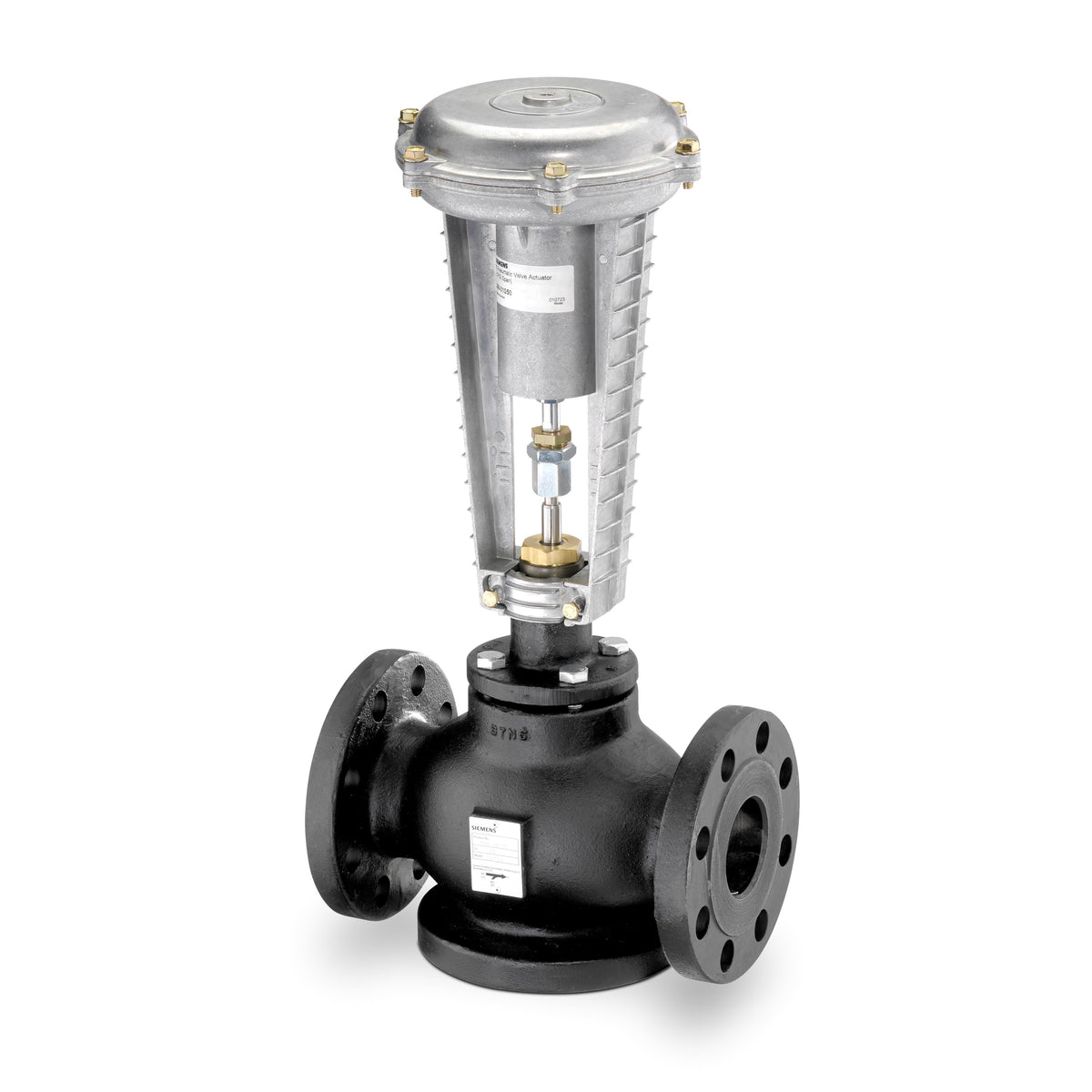

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 283-06176

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 283-06176 Documents

Datasheet(Flowrite AP 599 Series 8-Inch Pneumatic Valve Technical Instructions)Datasheet(Flowrite VF 599 Series. Three-Way Valves 2-1/2 to 6-inch Flanged Iron Body Technical Instructions)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin)Datasheet for Actuator(Flowrite AP 599 Series 8-Inch Pneumatic Valve Technical Instructions) More Info

Overview

Details for 283-06176

Valve assy 3W Mix 3" 100Cv Eq Pct/Lin SS Trim Flanged 8" Pneu Act w/ pos

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 3-Way Mixing
End Connection: Flanged
Connecting thread: Direct-coupled universal bonnet
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
High temperature: NO
Medium temperature: 20…250 ºF
Stroke: 3/4 in., 20 mm
Valve Actuator Type: Pneumatic
