283-06061    | Valve assy 2W NO, 3" 100Cv Lin SS Trim Flanged 8
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: SiemensSKU: 283-06061

Web Price:

$1,676.93
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

283-06061 | Valve assy 2W NO, 3" 100Cv Lin SS Trim Flanged 8" Pneu Act w/ pos | Siemens

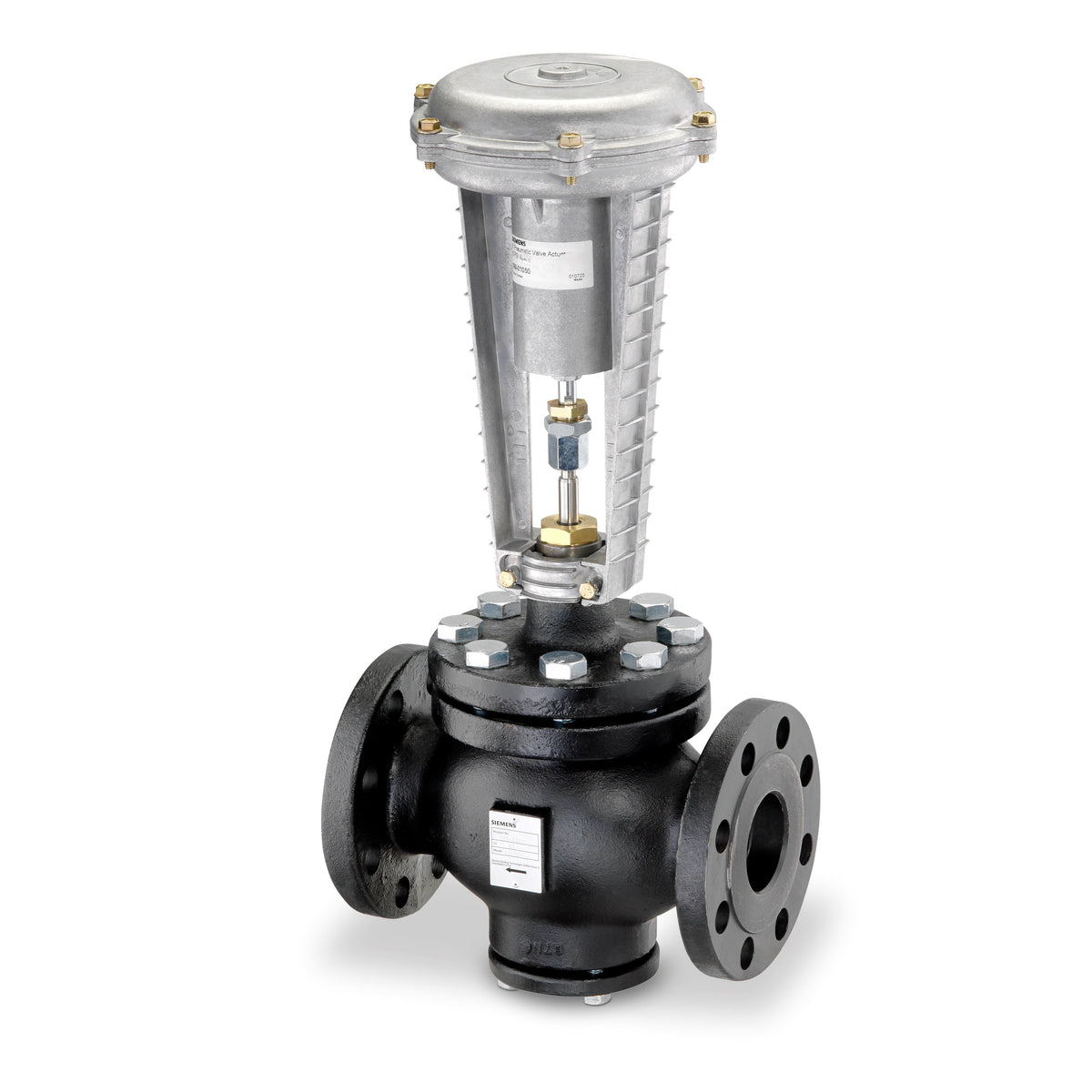

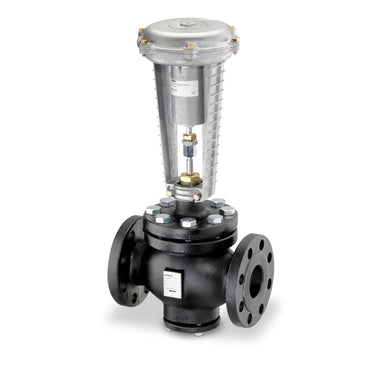

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with factory-mounted positioner and 5 psi span. The 2-way, normally open, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has a linear characteristic, stainless steel trim, and flanged end connections.

Siemens | 283-06061
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 283-06061

Overview

Details for 283-06061

Valve assy 2W NO, 3" 100Cv Lin SS Trim Flanged 8" Pneu Act w/ pos

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally open
End Connection
Flanged
Connecting thread
Direct-coupled universal bonnet
Material, valve body
Cast iron ASTM A126 Class B
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
Medium
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Medium temperature
20…250 ºF
Stroke
3/4 in., 20 mm
Valve Actuator Type
Pneumatic
