279-06131 | Valve assy Hi Temp 2W NC 3" 100Cv Lin SS Trim Flng 12" Pneu Act | Siemens

Flowrite 599 Series Valve Assembly features a 12-inch pneumatic actuator with 3/4-inch stroke and 5 psi span. The 2-way, normally closed, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and flanged end connections.

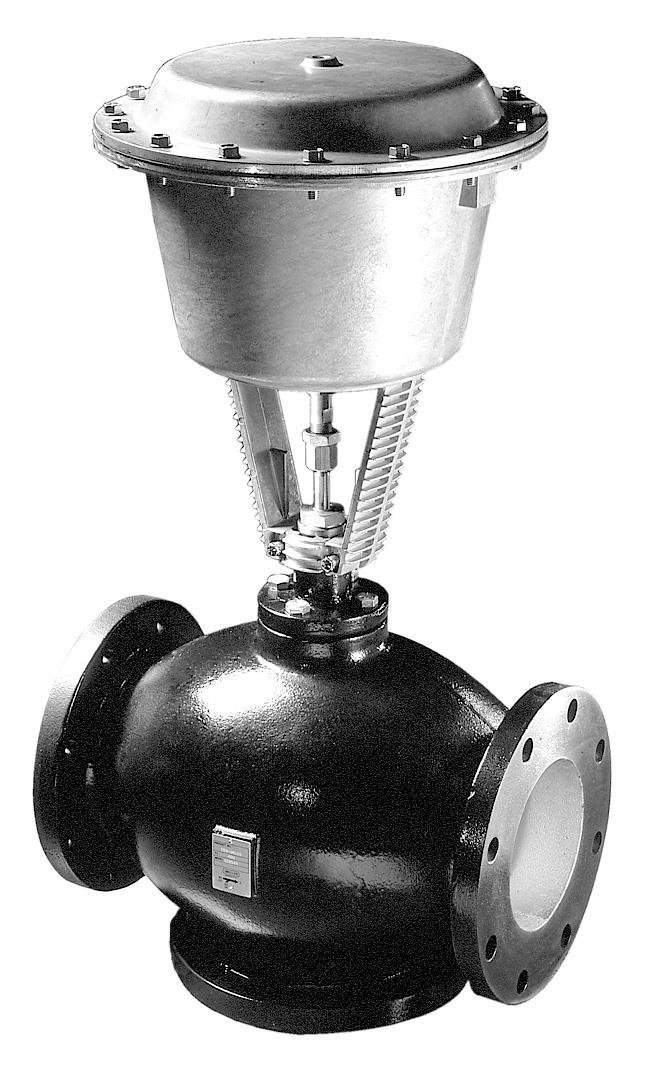

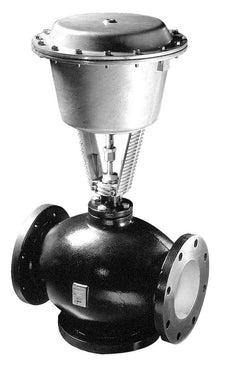

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 279-06131

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 279-06131 Documents

Datasheet(Flowrite VF 599 Series Two-Way Valves 2-1/2 to 6-inch Flanged Iron Body Technical Instructions)Datasheet(Flowrite AP 599 Series 12-inch PneumaticValve Technical Instructions)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin)Datasheet for Actuator(Flowrite AP 599 Series 12-inch PneumaticValve Technical Instructions) More Info

Overview

Details for 279-06131

Valve assy Hi Temp 2W NC 3" 100Cv Lin SS Trim Flng 12" Pneu Act

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: Flanged
Connecting thread: Direct-coupled universal bonnet
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
Medium: Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
High temperature: YES
Medium temperature: 20…337 ºF
Stroke: 3/4 in., 20 mm
Valve Actuator Type: Pneumatic
