277-06061 | Valve assy 2W NO, 3
277-06061 | Valve assy 2W NO, 3" 100Cv Lin SS Trim Flanged 8" Pneu Act | Siemens
Siemens | 277-06061
The photo is for representation purposes only and may not be a photo of product being purchased.

277-06061 | Valve assy 2W NO, 3" 100Cv Lin SS Trim Flanged 8" Pneu Act | Siemens

SKU: 277-06061Brand: SiemensCondition: New

Details for 277-06061

Valve assy 2W NO, 3" 100Cv Lin SS Trim Flanged 8" Pneu Act

Flowrite 599 Series Valve Assembly features a

Valve assy 2W NO, 3" 100Cv Lin SS Trim Flanged 8" Pneu Act

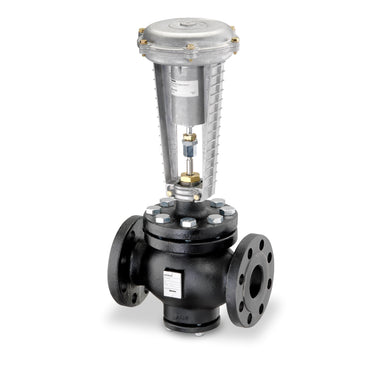

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with 5 psi span. The 2-way, normally open, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has a linear characteristic, stainless steel trim, and flanged end connections.
Read More
Brand: SiemensSKU: 277-06061
List Price
$3,302.09
$1,254.79
Availability: This product is currently available to purchase
This item ships via FREIGHT
Shipping and Returns Terms

Siemens 277-06061 Documents

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 7pm CDT M-F

Details for 277-06061

Valve assy 2W NO, 3" 100Cv Lin SS Trim Flanged 8" Pneu Act

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with 5 psi span. The 2-way, normally open, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has a linear characteristic, stainless steel trim, and flanged end connections.
