276-05930 | Valve assy 2W NC 2-1/2", 63Cv, Eq Pct SS Trim Flanged float El-Hydraul Act SR | Siemens

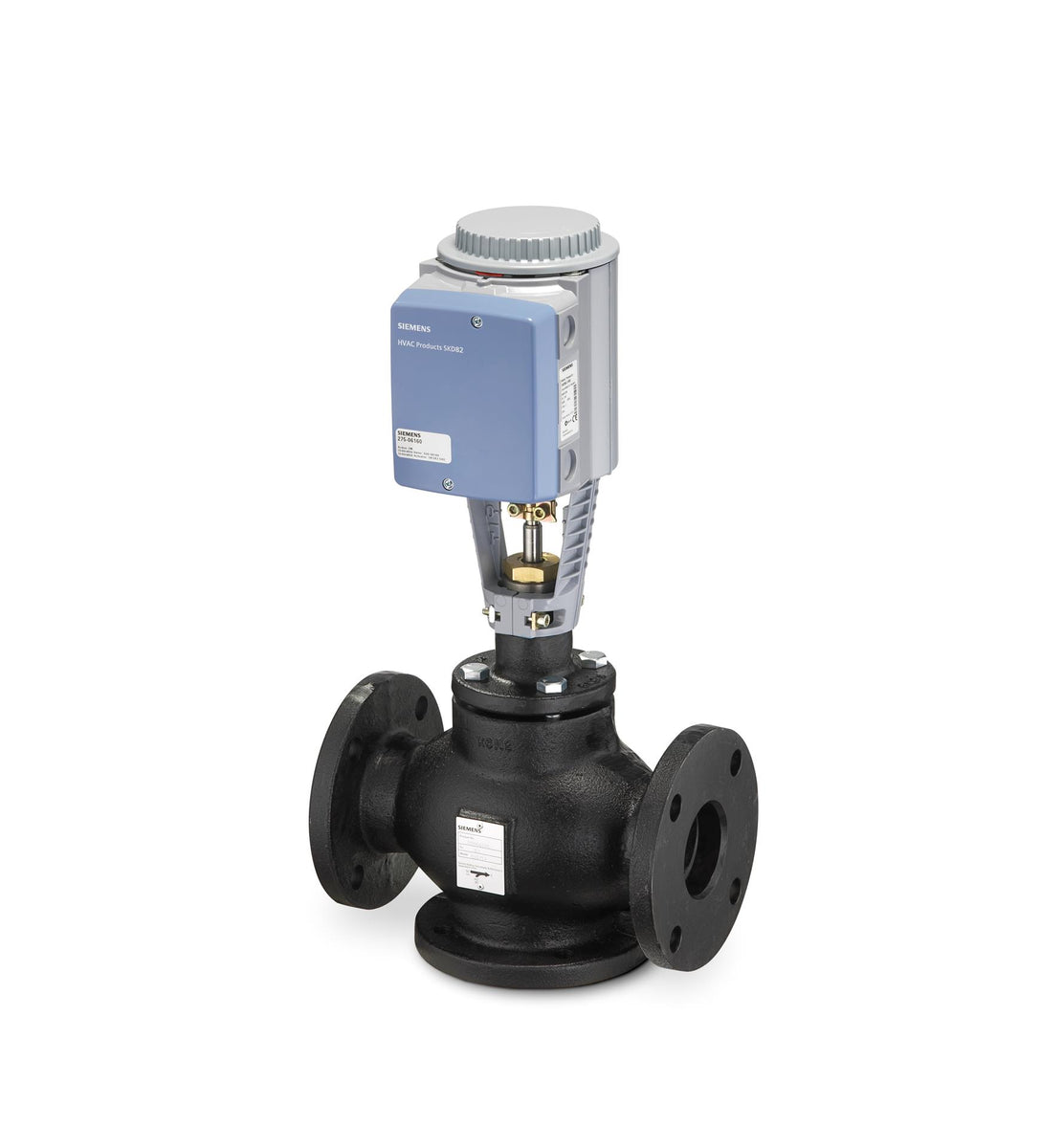

Flowrite 599 Series Valve Assembly features a floating control, spring return, 24 Vac electro-mechanical actuator. The 2-way, normally closed, 2-1/2-inch, 63 Cv valve assembly with 3/4-inch stroke is ANSI Class 250 and has an equal percentage characteristic, stainless steel trim, and flanged end connections.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 276-05930
Documents and manuals
Siemens 276-05930 Documents
Datasheet(Flowrite VF 599 Series Two-Way Valves 2-1/2 to 6-inch Flanged Iron Body Technical Instructions)Datasheet(Flowrite EA 599 Series SKD Electronic Valve 24 Vac 3-Position (Floating) Control Technical Instructions)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin)Datasheet for Actuator(Electrohydraulic actuators SKD..) More Info
Overview
Details for 276-05930
Valve assy 2W NC 2-1/2", 63Cv, Eq Pct SS Trim Flanged float El-Hydraul Act SR
Specifications
- Valve Body Style
- Stroke-Globe
- End Connection
- Flanged
- Connecting thread
- Direct-coupled universal bonnet
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
- Medium
- Saturated steam , Water , Water with anti-freeze , Steam
- Leakage rate
- Class IV (0.01% of Cv)
- Rangeability
- >100:1
- High temperature
- NO
- Port Configuration
- 2-Way Normally closed
- Medium temperature
- 20…250 ºF
- Ambient temperature, operation
- 5 to 130 °F, -15 to 55 °C
- Stroke
- 3/4 in., 20 mm
- Valve Actuator Type
- Electronic
- Supply Voltage
- 24 VAC
- Positioning time
- Power stroke 120 sec, Return stroke 120 sec, Spring return 8 sec
- Power consumption
- 18 VA
