276-03115 | Valve assy 2W NO, 1-1/2" 25Cv Eq Pct SS Trim FxF, float El-Hydraul Act SR | Siemens

Flowrite 599 Series Valve Assembly features a floating control, spring return, 24 Vac electro-mechanical actuator. The 2-way, normally open, 1-1/2-inch, 25 Cv valve assembly is ANSI Class 250 and has an equal percentage characteristic, stainless steel trim, and female x female end connections.

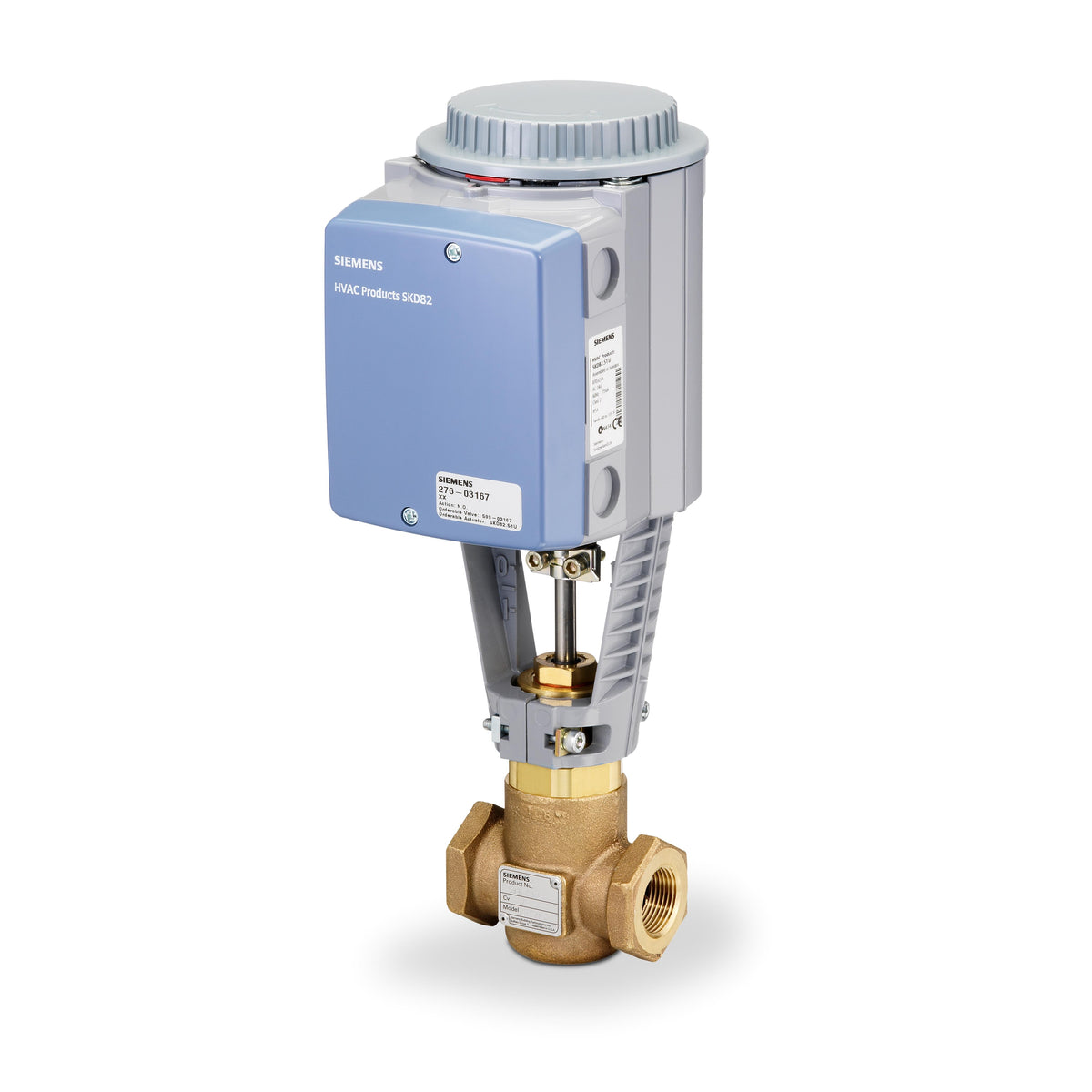

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 276-03115

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 276-03115 Documents

Datasheet(Flowrite EA 599 Series SKD Electronic Valve 24 Vac 3-Position (Floating) Control Technical Instructions)Datasheet(Flowrite 599 Series 2-way Valves 1/2 to 2-Inch Bronze Body. Technical Instructions)Datasheet(Flowrite Valve and Selection TB 255. Technical Bulletin)Datasheet for Actuator(Electrohydraulic actuators SKD..) More Info

Overview

Details for 276-03115

Valve assy 2W NO, 1-1/2" 25Cv Eq Pct SS Trim FxF, float El-Hydraul Act SR

Specifications

Valve Body Style: Stroke-Globe
End Connection: FxF
Connecting thread: Direct-coupled universal bonnet
Material, valve body: UNS CA 844 bronze
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium: Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
High temperature: NO
Port Configuration: 2-Way Normally open
Medium temperature: 20…250 ºF
Ambient temperature, operation: 5 to 130 °F, -15 to 55 °C
Stroke: 3/4 in., 20 mm
Valve Actuator Type: Electronic
Supply Voltage: 24 VAC
Positioning time: Power stroke 90 sec, Return stroke 90 sec, Spring return 8 sec
Power consumption: 15 VA
