275-05991 | Valve assy 2W NC 3", 100Cv, Eq Pct Bronze Trim Flanged float El-Hydraul Act NSR | Siemens

Flowrite 599 Series Valve Assembly features a floating control, non-spring return, 24 Vac electro-mechanical actuator. The 2-way, normally closed, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage characteristic, brass trim, and flanged end connections.

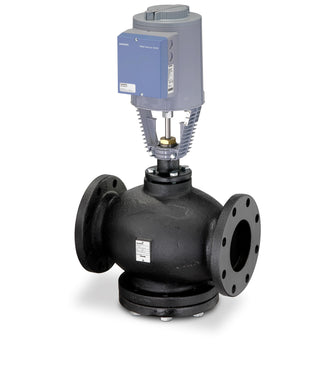

Siemens | 275-05991
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 275-05991

Overview

Details for 275-05991

Valve assy 2W NC 3", 100Cv, Eq Pct Bronze Trim Flanged float El-Hydraul Act NSR

Flowrite 599 Series Valve Assembly features a floating control, non-spring return, 24 Vac electro-mechanical actuator. The 2-way, normally closed, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage characteristic, bronze trim, and flanged end connections.

Specifications

Valve Body Style
Stroke-Globe
End Connection
Flanged
Connecting thread
Direct-coupled universal bonnet
Material, valve body
Cast iron ASTM A126 Class B
Material, inside set
Body Trim: Bronze , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
Medium
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Port Configuration
2-Way Normally closed
Medium temperature
20…250 ºF
Ambient temperature, operation
5 to 130 °F, -15 to 55 °C
Stroke
3/4 in., 20 mm
Valve Actuator Type
Electronic
Supply Voltage
24 VAC
Positioning time
Power stroke 120 sec, Return stroke 120 sec
Power consumption
13 VA
