275-03204 | Valve asy 3W Mix 1-1/4" 16Cv Eq Pct/Lin Brss Trim FxF float El-Hydrl Act NSR | Siemens

Flowrite 599 Series Valve Assembly features a floating control, non-spring return, 24 Vac electro-mechanical actuator. The 3-way, mixing, 1-1/4-inch, 16 Cv valve assembly is ANSI Class 250 and has an equal percentage/linear characteristic, brass trim, and female x female end connections.

Siemens | 275-03204

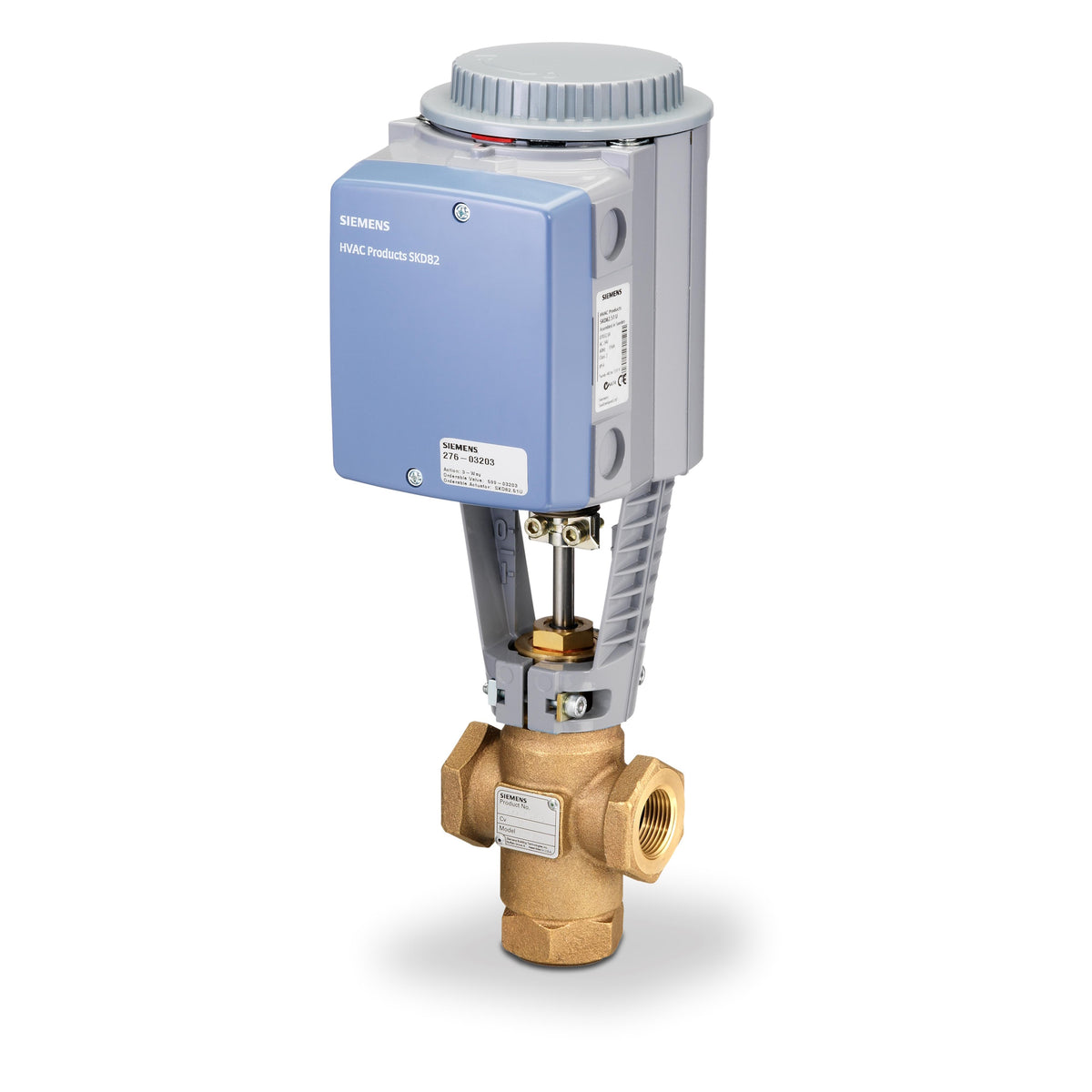

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 275-03204

Overview

Details for 275-03204

Valve asy 3W Mix 1-1/4" 16Cv Eq Pct/Lin Brss Trim FxF float El-Hydrl Act NSR

Specifications

Valve Body Style
Stroke-Globe
End Connection
FxF
Connecting thread
Direct-coupled universal bonnet
Material, valve body
UNS CA 844 bronze
Material, inside set
Body Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium
Water , Water with anti-freeze
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Port Configuration
3-Way Mixing
Medium temperature
20…250 ºF
Ambient temperature, operation
5 to 130 °F, -15 to 55 °C
Stroke
3/4 in., 20 mm
Valve Actuator Type
Electronic
Supply Voltage
24 VAC
Positioning time
Power stroke 90 sec, Return stroke 90 sec
Power consumption
10 VA
