274-06616 | Valve asy Hi Pr Close-off 2W NC 3" 100Cv Eq Pct SS Flange Prop El-Hyd Act SR | Siemens

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally closed, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage characteristic, stainless steel trim, and flanged end connections.

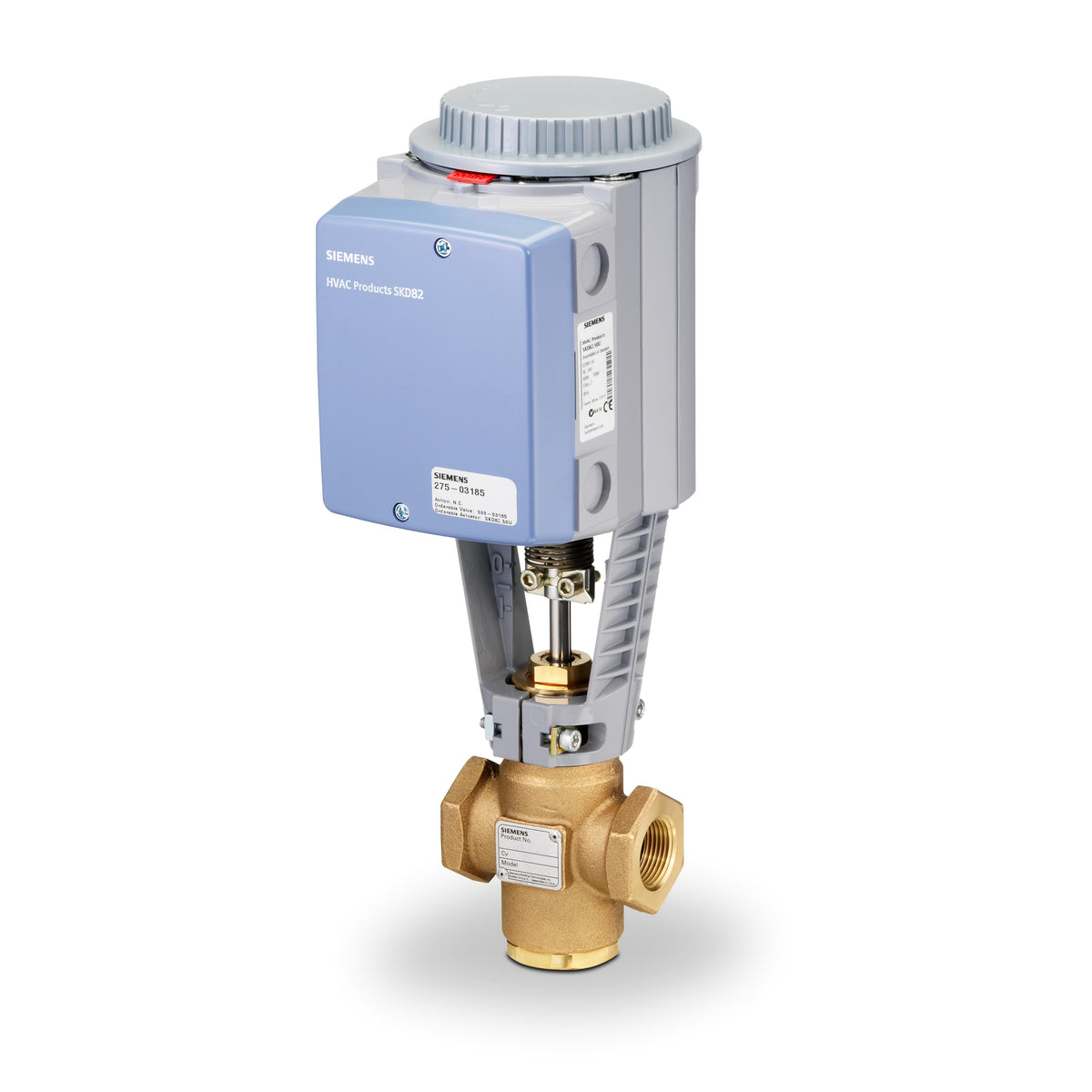

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 274-06616

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 274-06616 Documents

Datasheet(Flowrite SKD Valve Proportional Control Technical Instructions)Datasheet(Flowrite High Pressure Close off Valves 2-1/2 to 6-Inch Submittal Sheet)Datasheet(Flowrite 599 Series High Pressure Close-Off 2-Way Valves. 2-1/2 to 6-Inch. Flanged Iron Body. ANSI Classes 125 and 250 Technical Instructions)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin)Installation instruction(Flowrite AP 599 Series 8-inch Pneumatic Valve Installation Instructions)Datasheet for Actuator(Electrohydraulic actuators SKD..) Installation Instructions More Info

Overview

Details for 274-06616

Valve asy Hi Pr Close-off 2W NC 3" 100Cv Eq Pct SS Flange Prop El-Hyd Act SR

Specifications

Valve Body Style: Stroke-Globe
End Connection: Flanged
Connecting thread: Direct-coupled universal bonnet
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
High temperature: NO
Port Configuration: 2-Way Normally closed
Medium temperature: 20…250 ºF
Stroke: 3/4 in
Valve Actuator Type: Electronic
Supply Voltage: 24 VAC
Positioning time: Power stroke 30 s, Return stroke 15 s
Power consumption: 18 VA
