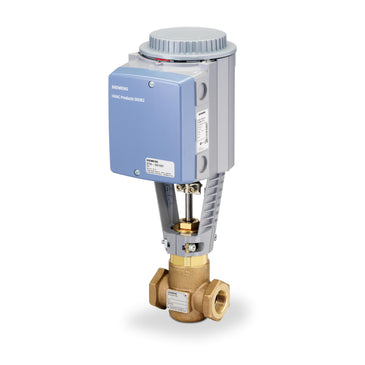

The photo is for representation purposes only and may not be a photo of product being purchased.

274-03168 | Valve assy 2W NO, 1-1/4" 16Cv Eq Pct Brass Trim FxF, Prop El-Hydraul Act SR | Siemens

SKU: 274-03168Brand: SiemensCondition: New

Details for 274-03168

Valve assy 2W NO, 1-1/4" 16Cv Eq Pct Brass Trim FxF, Prop El-Hydraul Act SR

Flowrite 599 Series Valve Assembly

Valve assy 2W NO, 1-1/4" 16Cv Eq Pct Brass Trim FxF, Prop El-Hydraul Act SR

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally open, 1-1/4-inch, 16 Cv valve assembly is ANSI Class 250 and has an equal percentage characteristic, brass trim, and female x female end connections.
Read More
Brand: SiemensSKU: 274-03168
List Price
$2,263.87
$860.27
Availability: This product is currently available to purchase
Orders over $999 ship FREE
Shipping and Returns Terms

Siemens 274-03168 Documents

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 7pm CDT M-F

Details for 274-03168

Valve assy 2W NO, 1-1/4" 16Cv Eq Pct Brass Trim FxF, Prop El-Hydraul Act SR

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally open, 1-1/4-inch, 16 Cv valve assembly is ANSI Class 250 and has an equal percentage characteristic, brass trim, and female x female end connections.

Description

The Flowrite 599 Series two-way valve bodies, ANSI 250, work with a Flowrite series actuator with a 3/4-inch (20 mm) stroke. Typical applications include control of hot or chilled water, 50% water-glycol solutions, or steam.

Features

  • ANSI Leakage Class IV (0.01% of Cv).
  • Normally-open and normally-closed configurations.
  • Cartridge-type packing.
  • Equal percentage flow characteristics with either brass or stainless steel trim.
  • Linear flow characteristic with stainless steel trim.
  • High temperature packing available on linear valves.
  • Direct-coupled universal bonnet.

Typical Specifications

Automatic control valves shall have NPT threaded type fittings, 1/2 through 2 inch (15 through 50 mm) sizes, and shall be ANSI 250 rated to withstand the pressures and temperatures encountered.

Valves shall have metal-to-metal seats, stainless steel stems, and ethylene propylene O-ring packing. Valves shall be ANSI Leakage Class IV (0.01% of Cv). Valves shall have a 100:1 rangeability or better.
