274-03116 | Valve assy 2W NO, 2" 40Cv Eq Pct SS Trim FxF, Prop El-Hydraul Act SR | Siemens
Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally open, 2-inch, 40 Cv valve assembly is ANSI Class 250 and has an equal percentage characteristic, stainless steel trim, and female x female end connections.

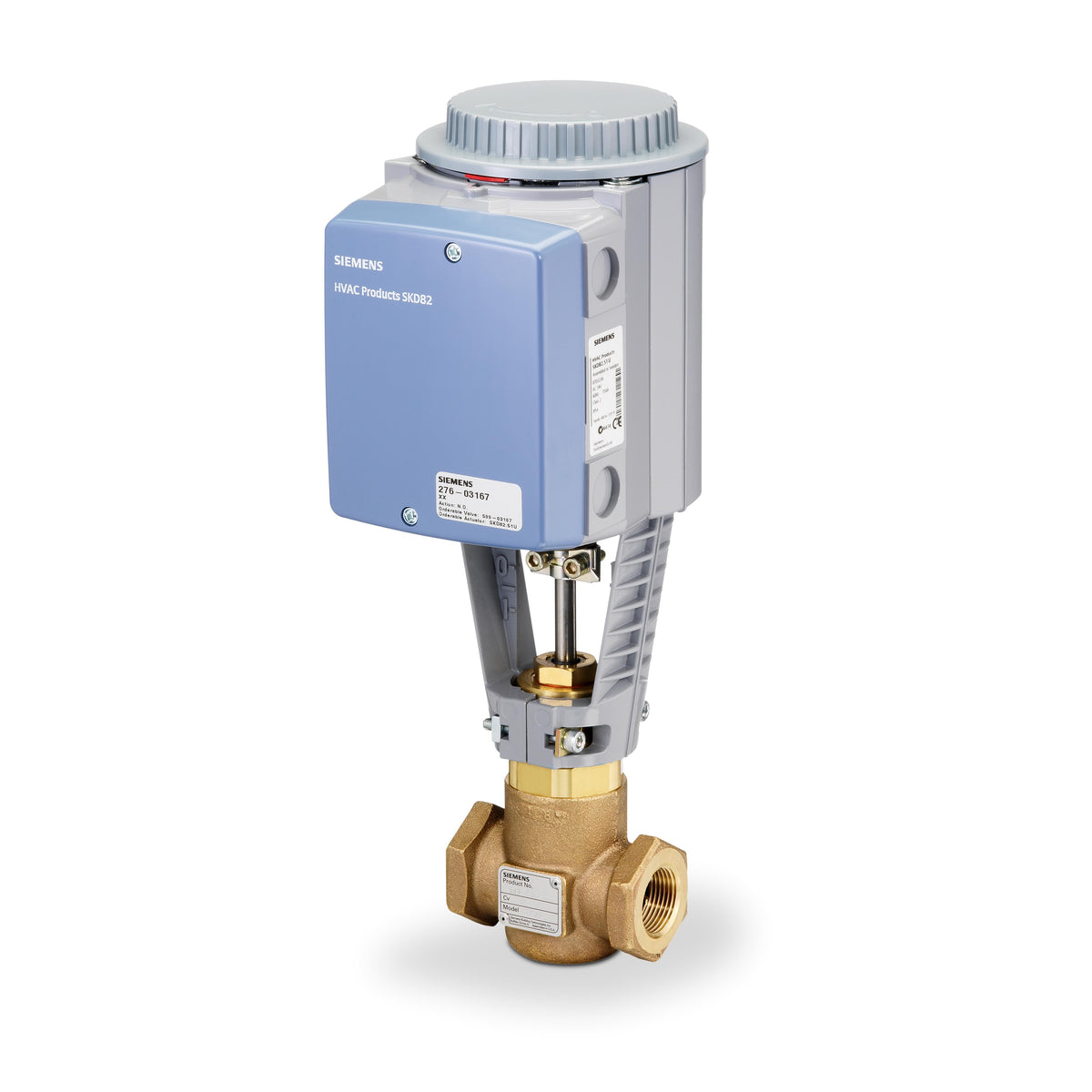

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 274-03116
Documents and manuals
Siemens 274-03116 Documents
Overview
Details for 274-03116
Valve assy 2W NO, 2" 40Cv Eq Pct SS Trim FxF, Prop El-Hydraul Act SR
Specifications
- Valve Body Style
- Stroke-Globe
- End Connection
- FxF
- Connecting thread
- Direct-coupled universal bonnet
- Material, valve body
- UNS CA 844 bronze
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
- Medium
- Saturated steam , Water , Water with anti-freeze , Steam
- Leakage rate
- Class IV (0.01% of Cv)
- Rangeability
- >100:1
- High temperature
- NO
- Port Configuration
- 2-Way Normally open
- Medium temperature
- 20…250 ºF
- Ambient temperature, operation
- 5 to 130 °F, -15 to 55 °C
- Stroke
- 3/4 in., 20 mm
- Valve Actuator Type
- Electronic
- Supply Voltage
- 24 VAC
- Positioning time
- Power stroke 30 sec, Return stroke 15 sec
- Power consumption
- 18 VA
