274-03077 | Valve assy 2W NC 1
274-03077 | Valve assy 2W NC 1", 10Cv, Lin, SS Trim Hi Temp Pkg FxF, Prop El-Hydraul Act SR | Siemens
Siemens | 274-03077

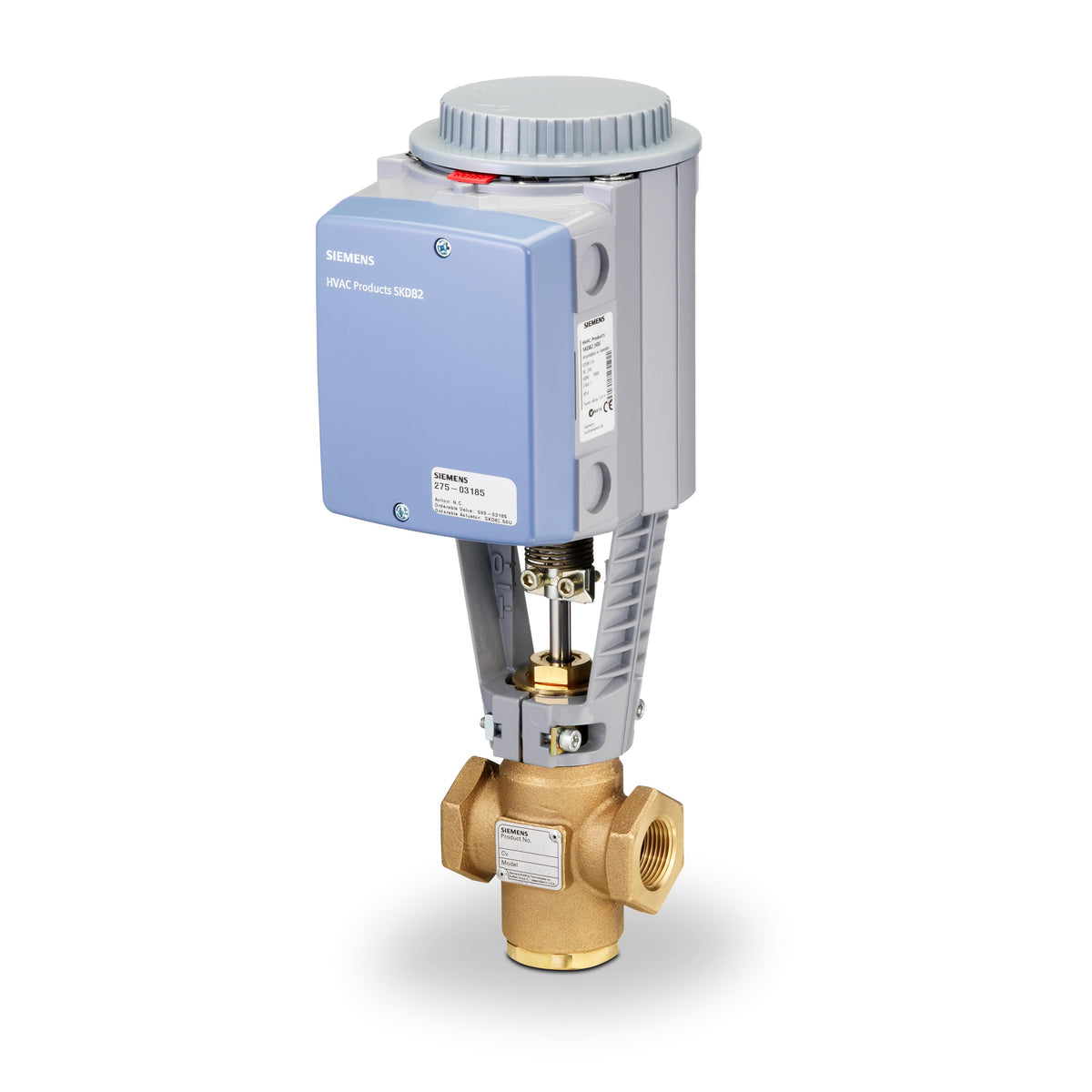

The photo is for representation purposes only and may not be a photo of product being purchased.

274-03077 | Valve assy 2W NC 1", 10Cv, Lin, SS Trim Hi Temp Pkg FxF, Prop El-Hydraul Act SR | Siemens

SKU: 274-03077Brand: SiemensCondition: New

Details for 274-03077

Valve assy 2W NC 1", 10Cv, Lin, SS Trim Hi Temp Pkg FxF, Prop El-Hydraul Act SR

Flowrite 599 Series

Valve assy 2W NC 1", 10Cv, Lin, SS Trim Hi Temp Pkg FxF, Prop El-Hydraul Act SR

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally closed, 1-inch, 10 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and female x female end connections.
Read More
Brand: SiemensSKU: 274-03077
List Price
$2,440.07
$927.23
Availability: This product is currently available to purchase
Orders over $999 ship FREE
Shipping and Returns Terms

Siemens 274-03077 Documents

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 7pm CDT M-F

Details for 274-03077

Valve assy 2W NC 1", 10Cv, Lin, SS Trim Hi Temp Pkg FxF, Prop El-Hydraul Act SR

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally closed, 1-inch, 10 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and female x female end connections.

Description

The Flowrite 599 Series SKD6xU Electronic Valve Actuators require a 24 Vac supply and receive a 0 to 10 Vdc or a 4 to 20 mA control signal to proportionally control a valve. These actuators are designed to work with Flowrite 599 Series valves with a 3/4- inch (20 mm) stroke.

Features

  •  Direct-coupled installation requires no special tools or adjustments
  • Visual and electronic stroke indication
  • Die-cast aluminum housing
  • Manual override
  • Spring return to fail-safe position or non-spring return fail-in-place
  • Automatic stroke calibration
  • Maintenance-free
