274-03059 | Valve assy 2W NO, 1
274-03059 | Valve assy 2W NO, 1" 10Cv Lin SS Trim Hi Temp Pkg FxF, Prop El-Hydraul Act SR | Siemens
Siemens | 274-03059

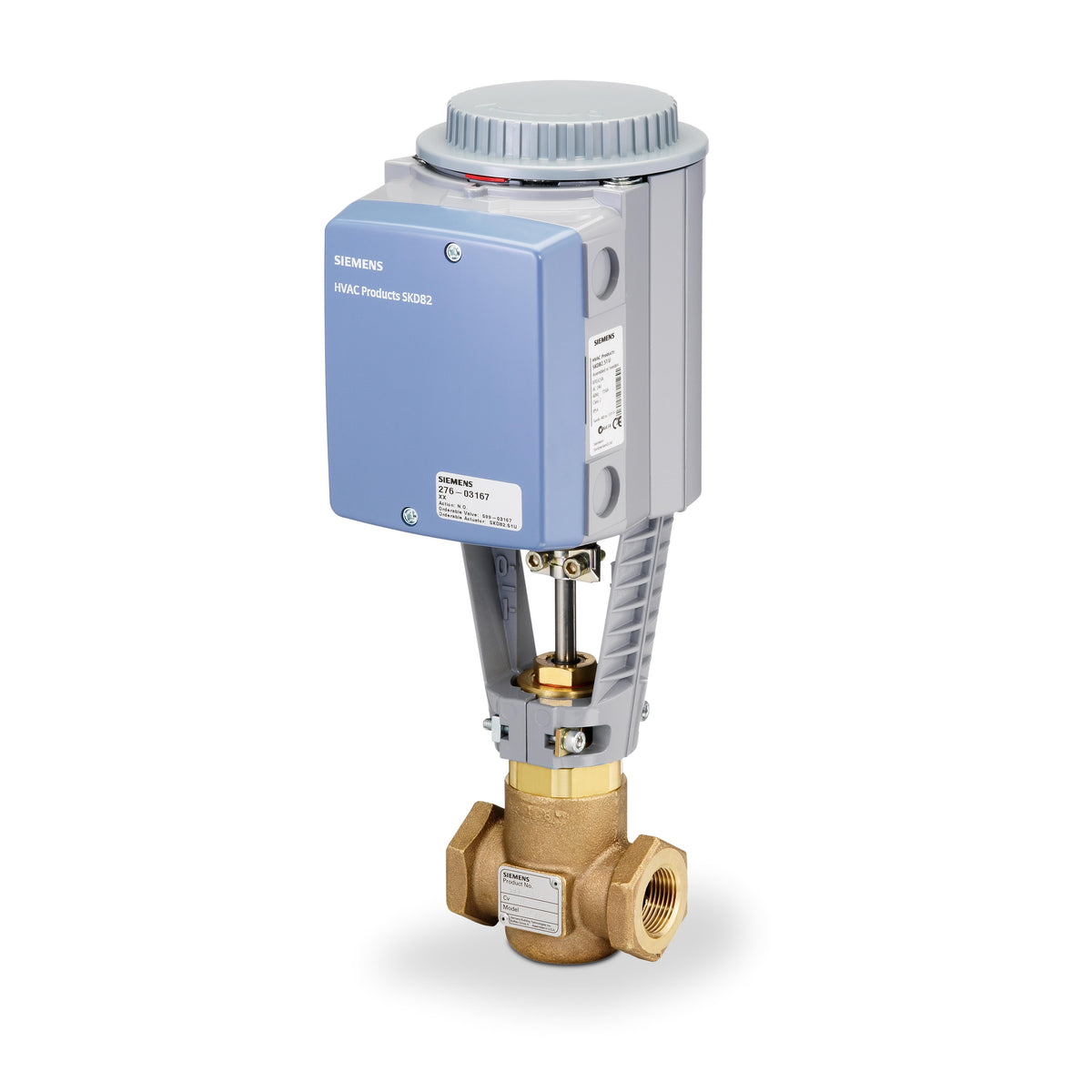

The photo is for representation purposes only and may not be a photo of product being purchased.

274-03059 | Valve assy 2W NO, 1" 10Cv Lin SS Trim Hi Temp Pkg FxF, Prop El-Hydraul Act SR | Siemens

SKU: 274-03059Brand: SiemensCondition: New

Details for 274-03059

Valve assy 2W NO, 1" 10Cv Lin SS Trim Hi Temp Pkg FxF, Prop El-Hydraul Act SR

Flowrite 599 Series

Valve assy 2W NO, 1" 10Cv Lin SS Trim Hi Temp Pkg FxF, Prop El-Hydraul Act SR

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally open, 1-inch, 10 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and female x female end connections.
Read More
Brand: SiemensSKU: 274-03059
List Price
$2,440.07
$927.23
Availability: This product is currently available to purchase
Orders over $999 ship FREE
Shipping and Returns Terms

Siemens 274-03059 Documents

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 7pm CDT M-F

Details for 274-03059

Valve assy 2W NO, 1" 10Cv Lin SS Trim Hi Temp Pkg FxF, Prop El-Hydraul Act SR

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally open, 1-inch, 10 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and female x female end connections.

Description

Application

These electronic actuators are designed to be used with Flowrite 599 Series valves and Siemens Industry standard valves with a 3/4-inch (20 mm) stroke in liquid service applications
