274-03024 | Valve assy 2W NC 1-1/4
274-03024 | Valve assy 2W NC 1-1/4", 16Cv, Lin, SS Trim FxF, Prop El-Hydraul Act SR | Siemens
Siemens | 274-03024

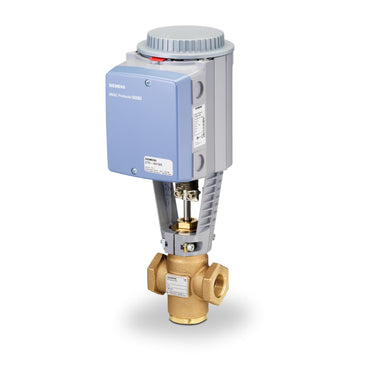

The photo is for representation purposes only and may not be a photo of product being purchased.

274-03024 | Valve assy 2W NC 1-1/4", 16Cv, Lin, SS Trim FxF, Prop El-Hydraul Act SR | Siemens

SKU: 274-03024Brand: SiemensCondition: New

Details for 274-03024

Valve assy 2W NC 1-1/4", 16Cv, Lin, SS Trim FxF, Prop El-Hydraul Act SR

Flowrite 599 Series Valve Assembly features

Valve assy 2W NC 1-1/4", 16Cv, Lin, SS Trim FxF, Prop El-Hydraul Act SR

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally closed, 1-1/4-inch, 16 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, and female x female end connections.
Read More
Brand: SiemensSKU: 274-03024
List Price
$2,565.39
$974.85
Availability: This product is currently available to purchase
Orders over $999 ship FREE
Shipping and Returns Terms

Siemens 274-03024 Documents

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 7pm CDT M-F

Details for 274-03024

Valve assy 2W NC 1-1/4", 16Cv, Lin, SS Trim FxF, Prop El-Hydraul Act SR

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally closed, 1-1/4-inch, 16 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, and female x female end connections.
