270-03076 | Assembly: 2-Way, NC, 3/4", 6.3 Cv, Linear, SS Trim, FxF, 8" Pnu Act | Siemens

Flowrite 599 Series Valve Assembly features a 4-inch pneumatic actuator with 10-15 psi. The 2-way, normally closed, 3/4-inch, 6.3 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and female x female end connections.

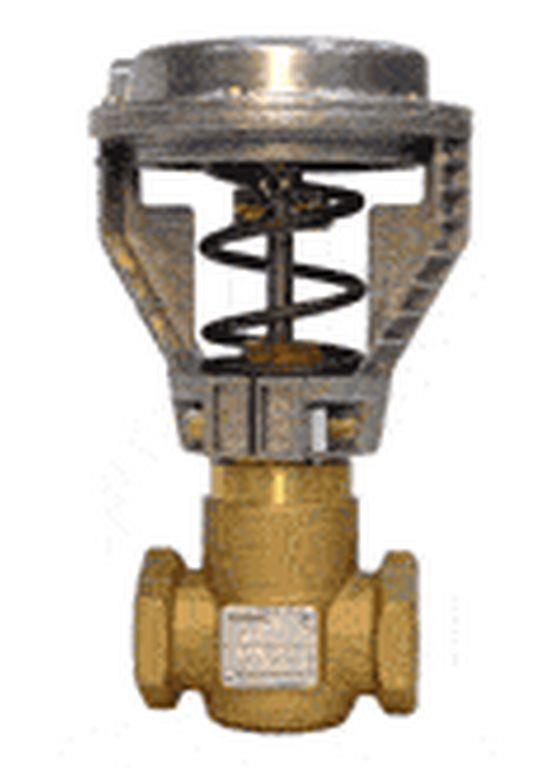

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 270-03076

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 270-03076 Documents

Datasheet(Flowrite 599 Series 2-way Valves 1/2 to 2-Inch Bronze Body. Technical Instructions)Datasheet(Flowrite AP 599 Series 4-Inch Pneumatic Valve Technical Instructions)Datasheet(Flowrite Valve and Selection TB 255. Technical Bulletin)Datasheet for Actuator(Flowrite AP 599 Series 4-Inch Pneumatic Valve Technical Instructions) More Info

Overview

Details for 270-03076

Assembly: 2-Way, NC, 3/4", 6.3 Cv, Linear, SS Trim, FxF, 8" Pnu Act

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: FxF
Connecting thread: Direct-coupled universal bonnet
Material, valve body: UNS CA 844 bronze
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium: Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
High temperature: YES
Medium temperature: 20…337 ºF
Stroke: 3/4 in., 20 mm
Valve Actuator Type: Pneumatic
