270-03022 | Assembly: 2-Way, NC, 3/4", 6.3 Cv, Linear, Brass, FxF, 4" Pnu Act | Siemens
Flowrite 599 Series Valve Assembly features a 4-inch pneumatic actuator with 10-15 psi. The 2-way, normally closed, 3/4-inch, 6.3 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, and female x female end connections.

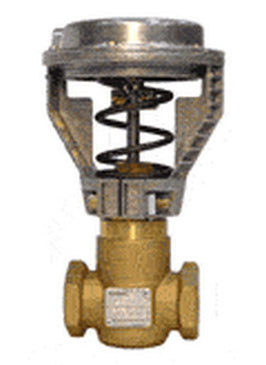

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 270-03022
Documents and manuals
Siemens 270-03022 Documents
Datasheet(Flowrite 599 Series 2-way Valves 1/2 to 2-Inch Bronze Body. Technical Instructions)Datasheet(Flowrite AP 599 Series 4-Inch Pneumatic Valve Technical Instructions)Datasheet(Flowrite Valve and Selection TB 255. Technical Bulletin)Datasheet for Valve(Flowrite 599 Series 2-Way Valves. 1/2 to 2-Inch Threaded. ANSI Class 250. Bronze Body Submittal Sheet)Datasheet for Actuator(Flowrite AP 599 Series 4-Inch Pneumatic Valve Technical Instructions) More Info
Overview
Details for 270-03022
Assembly: 2-Way, NC, 3/4", 6.3 Cv, Linear, Brass, FxF, 4" Pnu Act
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally closed
- End Connection
- FxF
- Connecting thread
- Direct-coupled universal bonnet
- Material, valve body
- UNS CA 844 bronze
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
- Medium
- Saturated steam , Water , Water with anti-freeze , Steam
- Leakage rate
- Class IV (0.01% of Cv)
- Rangeability
- >100:1
- High temperature
- NO
- Medium temperature
- 20…250 ºF
- Stroke
- 3/4 in., 20 mm
- Valve Actuator Type
- Pneumatic
