267-06166 | Valve assy 3W Mix 3
267-06166 | Valve assy 3W Mix 3" 100Cv Eq Pct/Lin SS Trim Flanged Prop El-Hydrl Act NSR | Siemens
Siemens | 267-06166

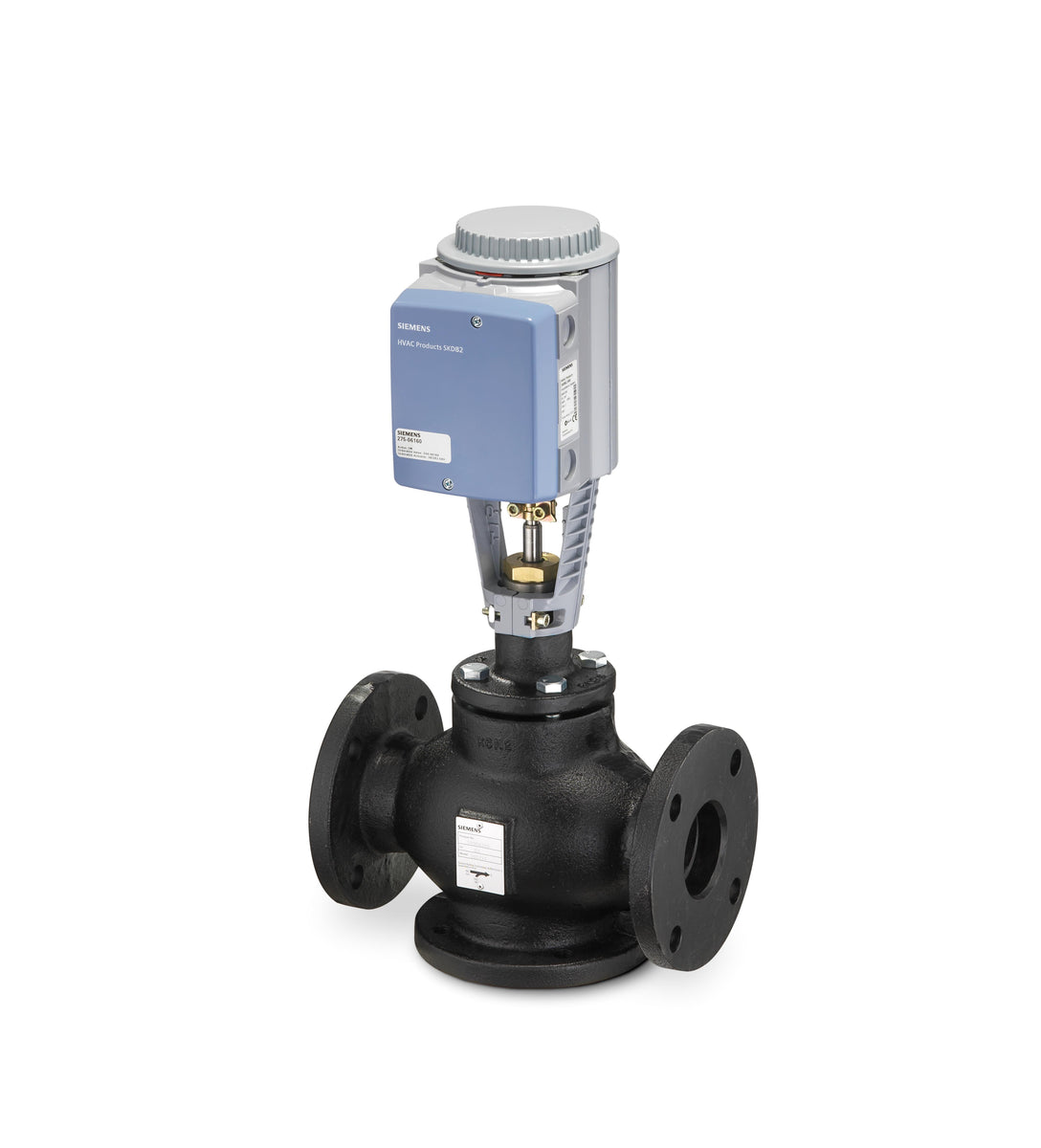

The photo is for representation purposes only and may not be a photo of product being purchased.

267-06166 | Valve assy 3W Mix 3" 100Cv Eq Pct/Lin SS Trim Flanged Prop El-Hydrl Act NSR | Siemens

SKU: 267-06166Brand: SiemensCondition: New

Details for 267-06166

Valve assy 3W Mix 3" 100Cv Eq Pct/Lin SS Trim Flanged Prop El-Hydrl Act NSR

Flowrite 599 Series Valve Assembly

Valve assy 3W Mix 3" 100Cv Eq Pct/Lin SS Trim Flanged Prop El-Hydrl Act NSR

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), non-spring return, 24 Vac electro-hydraulic actuator. The 3-way, mixing, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, stainless steel trim, and flanged end connections.
Read More
Brand: SiemensSKU: 267-06166
List Price
$5,405.78
$2,054.20
Availability: This product is currently available to purchase
This item ships via FREIGHT
Shipping and Returns Terms

Siemens 267-06166 Documents

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 7pm CDT M-F

Details for 267-06166

Valve assy 3W Mix 3" 100Cv Eq Pct/Lin SS Trim Flanged Prop El-Hydrl Act NSR

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), non-spring return, 24 Vac electro-hydraulic actuator. The 3-way, mixing, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, stainless steel trim, and flanged end connections.
